- Gigabyte smart fan
With the increased number of fans and pumps powered by the motherboard, some could expect an overwhelming control center. No need to worry, we found ways to keep everything at hand. The new Smart Fan 5 software is user-friendly and extremely powerful, bringing out of this world level of control over each part of the cooling system. Smart Fan 5 can be found inside the App center, under the SIV software together with additional monitoring tools. If you want to configure the cooling performance from a different access level, you can do so directly from BIOS.
Gigabyte smart fan
EasyTune™
GIGABYTE‘s EasyTune™ is a simple and easy-to-use interface that allows beginner and expert users to fine-tune their system settings or adjust system and memory clocks and voltages in a Windows environment.
With Smart Quick Boost, one click is all it takes to automatically overclock your system, giving an added performance boost when you need it the most.
(Note) Please install APP Center first before installing this utility.
Get a Free Boost of Performance
Get the highest levels of performance from your PC with easy-to-use GIGABYTE overclocking features.
Advanced Settings:
For seasoned pro’s
Easy OC Presets:
One click automatic
CPU and RAM Overclock
Auto Tuning:
Automatically find your PC’s
optimal performance level

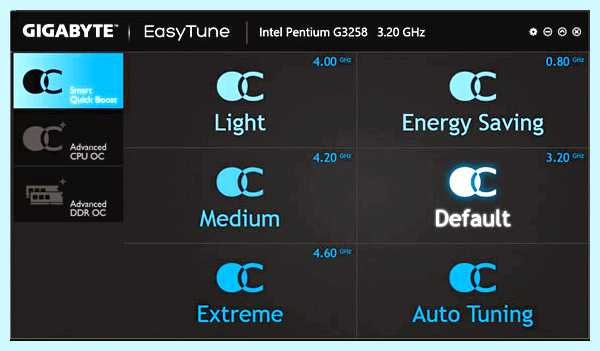

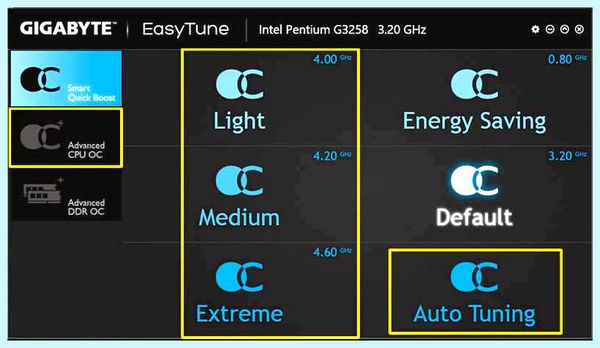

Smart Quick Boost provides users with different levels of CPU frequencies to choose
from to achieve desired system performance.

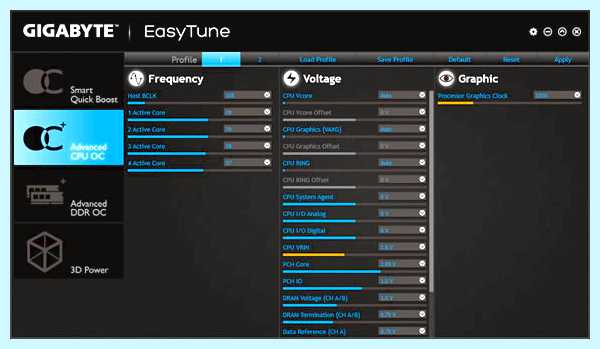

Advanced CPU OC allows users to set the CPU’s base clock, frequency and voltages, and integrated graphics frequency.
Как настроить Smart Fan 5 — BIOS не нужен! Бесплатное программное обеспечение для управления вентиляторами

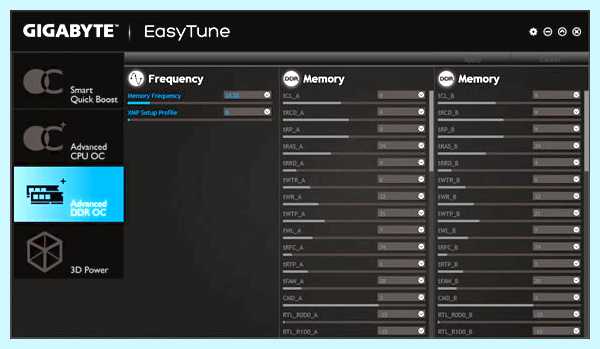

Advanced DDR OC allows users to set the memory clock with XMP profile support.

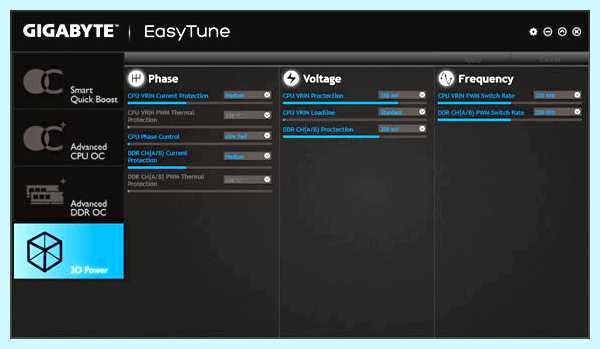

3D Power allows users to change PWM power phase, voltage, and frequency settings
System Information Viewer

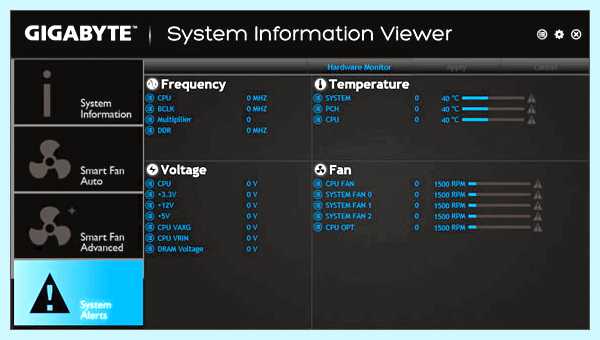

GIGABYTE System Information Viewer is a central location that gives you access to your current system status. Monitor components such as the clocks and processor, set your fan preferred speed profile, create alerts when temperature gets too high or record your system’s behavior; these are the possibilities of the System Information View.
(Note) Please install APP Center first before installing this utility.
The System Information tab provides information on the installed CPU, motherboard
model name and the BIOS version, and in place memory.

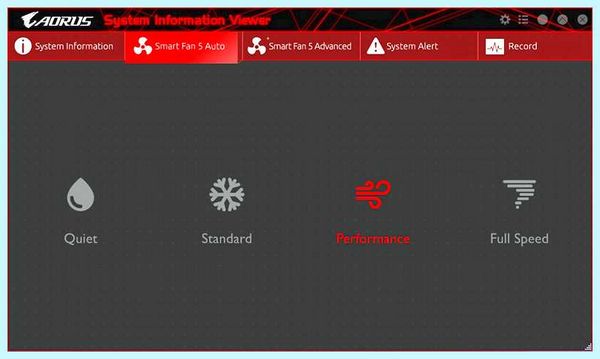

The Smart Fan Auto tab gives users access to 4 different Smart Fan modes.

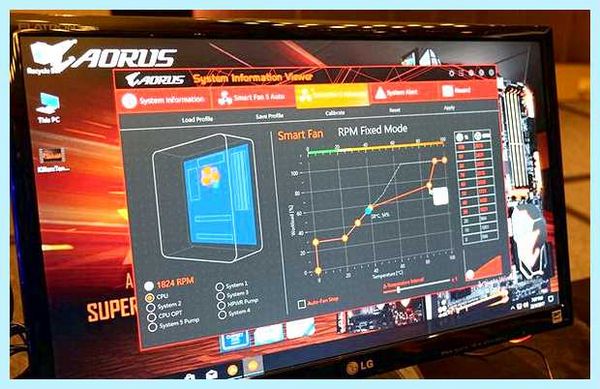

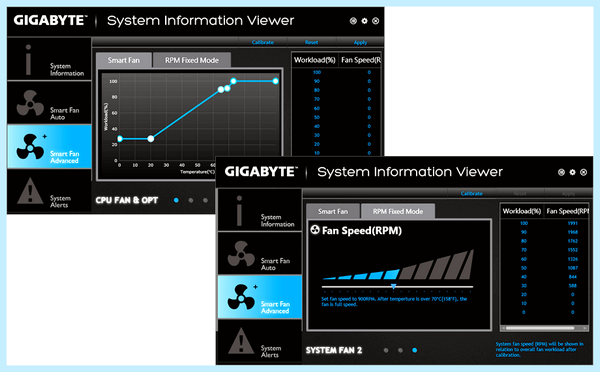

The Smart Fan Advance tab allows users to manually adjust each fan’s curve ratio with fan calibrate feature to synchronize all system fans.
The System Alerts tab allows you to create warning messages alerts that are related to
system changes.

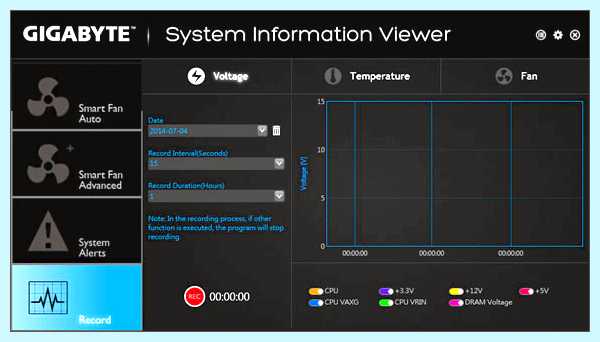

The Record feature allows users to record all hardware status during a set period of time.
Features may vary by model.
The pictures are subject to change without notice.

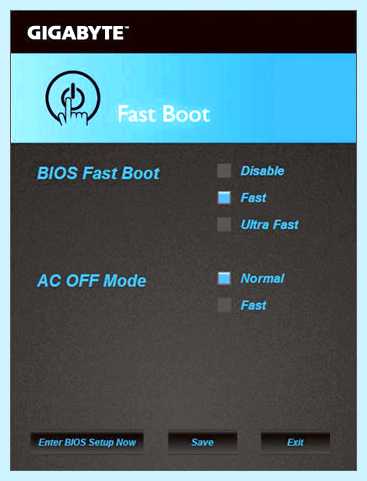

Fast Boot
Through the simple GIGABYTE Fast Boot *interface, you can enable and modify the Fast Boot or Next Boot After AC Power Loss system settings in a windows environment.
(Note) Please install APP Center first before installing this utility.
BIOS Fast Boot:
This option is the same as the Fast Boot option in BIOS Setup. It allows you to enable or disable the fast boot function to shorten the OS boot time.
AC OFF Mode:
This option is the same as the Next Boot After AC Power Loss option in BIOS Setup. It allows you to select the system boot mode upon the return of power after an AC power loss.
* This function is supported by Microsoft Windows 8.1/8 only.
Share the webpage to Facebook and Twitter :
All intellectual property rights, including without limitation to copyright and trademark of this work and its derivative works are the property of, or are licensed to, GIGA-BYTE TECHNOLOGY CO., LTD. Any unauthorized use is strictly prohibited.
[Tech Friday] Smart Fan 5
As PC DIY enthusiasts, we care for our computers in a different way, it’s like these little machines have a special place in our rooms and in our hearts. We want to protect our gaming hardware from high temperatures but doesn’t it feel difficult sometimes to reach a balance between temperature and noise? We dream about the stunning looks of our computers but you know how hard it is to deal with hardware limitations? We experienced the exact same problems and we came up with a one-stop solution called Smart Fan 5.
What’s Smart Fan 5?
Smart Fan 5 is an awesome cooling technology you can find on our motherboards that uses hardware and software components to keep our systems cool and quiet to match our preferences. Hybrid fan headers together with multiple temperature sensors and the always evolving UI give us in-depth control over fans, temperature and noise levels. What else can we ask for?
One added benefit of hybrid fan headers is the ability to automatically detect what device is installed and supply the correct PWM or Voltage signal, making the motherboards that much more liquid cooling friendly. What can go wrong when even the fan headers are this smart? Even power-hungry water pumps used in complex custom loops will be taken care of with ease by the 3A hybrid fan headers found across the board.
Gaming at maximum settings puts a heavy load on the system and with Smart Fan 5 it’s possible to configure fans to provide real-time readings from different thermal sensors. Various sensors located in critical areas of the motherboard allow for a fine tune response to different loading situations and any fan configurations.
Wouldn’t it be cool to have a gaming beast PC that doesn’t roar when roaring isn’t necessary? As everyone is doing their best to save the planet by maximizing power efficiency, it’s possible to rely on passive cooling to save both on the dB(A)s and Watts scales. With the new Fan Stop feature, Smart Fan 5 has the capability to bring all fans to a complete stop in order to achieve total silent operation. Some activities are more enjoyable in silence!
A newly designed Windows UI, as well as a unique BIOS integration, are the welcome cards that invite us to discover and appreciate the potential of this cooling technology.
Gaming performance
We see Smart Fan 5 as a must-have for any gaming-oriented PC build and there’s no going back after you’ve tried it. The multiple options to adjust fan speeds based on internal temperatures mean the usual long grinding hours are heavier on your wrists than on your beloved (and so often expensive) components. We all try our best to prolong the durability of such components while maintaining high performance at all times. Either through the very simple Auto mode with one click configuration or the more complex Advanced mode, the new software grants the desired balance between noise and performance.
Silent operation
The world can be a noisy place so the peace of mind brought by silence can often times be priceless. When the computer is in idle or running less demanding tasks, Smart Fan 5 is able to bring down the level of noise produced by rotating fans to the point of achieving complete fan silence using the Fan Stop. This new feature, which stops any fan while temperatures are below a set threshold, helps to create a more relaxed environment where creativity can flourish.
Gigabyte APP CENTER — Smart Fan 5 overview
Centralized Control
With the increased number of fans and pumps powered by the motherboard, some could expect an overwhelming control center. No need to worry, we found ways to keep everything at hand. The new Smart Fan 5 software is user-friendly and extremely powerful, bringing out of this world level of control over each part of the cooling system. Smart Fan 5 can be found inside the App center, under the SIV software together with additional monitoring tools. If you want to configure the cooling performance from a different access level, you can do so directly from BIOS.
Flexible Configuration

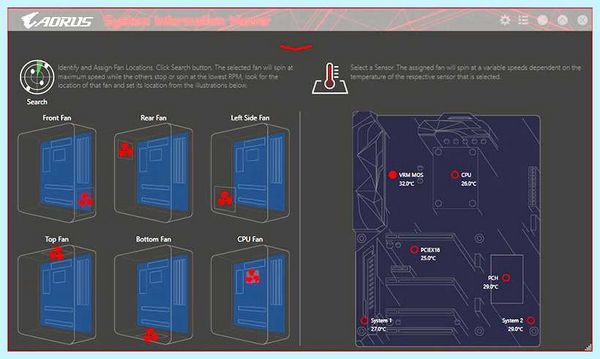

You have a picture in your mind about the final looks of your PC but somehow one cable is just too short to reach that special pump header. What can save you from a nervous breakdown? The location of fan headers on a motherboard can dictate the fan position due to cable routing limitations and different power configuration of each fan header. Smart Fan 5 is here to save you as it allows you to interchange fan headers and allocate fans as you like since specific sensors better translate temperature variations in different zones inside the chassis. After installation, it might be hard to detect which fan is connected to which header but using the included search function, this process is dramatically easier. From there you can setup our fan configuration and play with the fan curves.
Be sure to follow us on Social Media!
Facebook | Twitter | Instagram
Настройка в BIOS скорости кулера для центрального процессора
Comments
Please add a GPU monitor temp for cooling option, right now its has a pci-e monitor but it stays so cool it doesn’t work for my needs and I’d rather not have to buy a fan hub for corsair link to use their GPU monitor to controls fans. Adding this would complete my build and I’ve been mulling over not using smart fan 5 and using corsair link with a commander pro because it doesn’t have the gpu monitor that I need.
10 Марта 2018 02:38
Also, please allow for a sharper fan curve, that would be really beneficial for those that would like the lowest rpm available until the temp hits a certain thresh hold then to have it ramp up. Another suggestion would be having a secondary fan curve enabled for when the system hits a certain temp, if the temp hits xx then the fans wont lower until the temps yy then it enables the first fan curve. This would be useful to make sure the fans cool off the system enough after gaming/project and then go back to silent operation.
Gigabyte smart fan
Smart Fan 5
With Smart Fan 5 users can ensure that their gaming PC can maintain its performance while staying cool. Smart Fan 5 allows users to interchange their fan headers to reflect different thermal sensors at different locations on the motherboard. Not only that, with Smart Fan 5 more hybrid fan headers that support both PWM and Voltage mode fans have been introduced to make the motherboard more liquid cooling friendly.
Different models have different number of fan pin headers and temperature sensors. Smart Fan 5 function may vary by model.
Temperature Sensors
Hybrid Fan Headers
■ 6 Temperature Sensors
■ 5 Fan / Water Pump Connectors
■ All Fan Pin Headers Upgraded to Hybrid Fan Headers
■ Interoperable Fans and Sensors
■ Intuitive UI for Fan Control
Achieve fan silence. With Fan Stop map any fan to stop completely when temperatures drop below a specified threshold. Which fan stops, based on readings from which sensor, and at what temperature—all of it can be customized to your liking.
Intelligent Fan Control Design

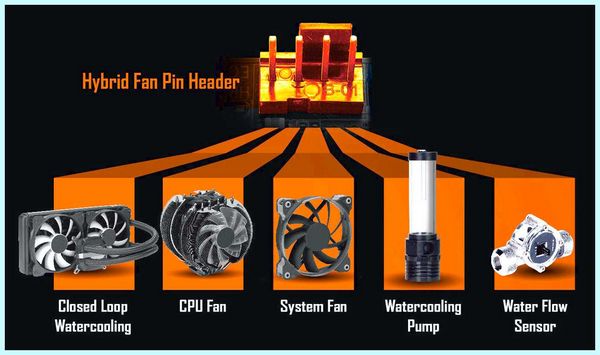

Hybrid Fan Pin Headers
Assume complete control over your liquid cooling setup! Smart Fan 5 receives up-to-the-second information on flow-rate through the Hybrid Fan Pin Headers—giving you absolute mastery over your PC.
All Hybrid Fan Headers can automatically detect the type of cooling device whether it be fan or pump with different PWM or Voltage mode.
New Smart Fan 5 Software
Interoperable Sensors and Fans
Each fan can be customized to operate at different speeds according to any defined temperature source input (except the CPU fan).

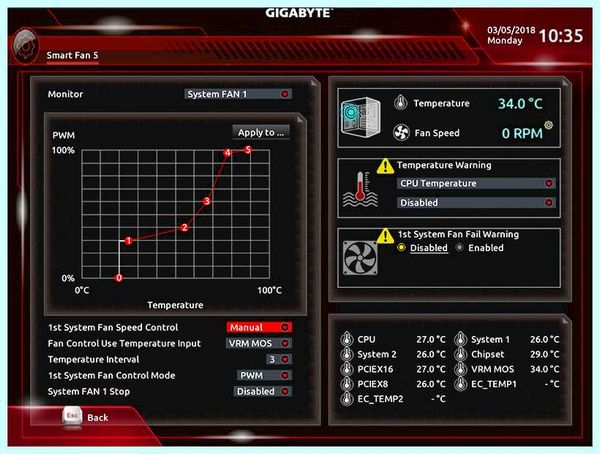

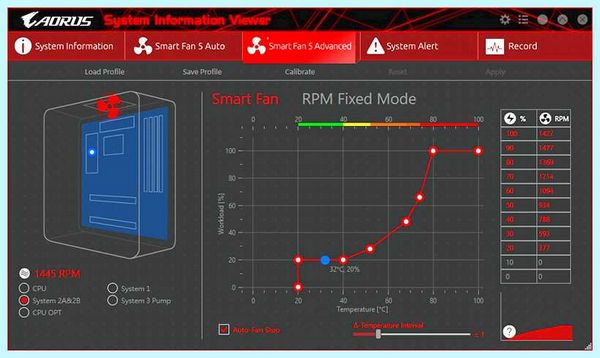

Fan Curve
Customize fan curves based on specific temperatures with the intuitive graphical UI.
Choose from different modes, Quiet to Full Speed, to match your system usage scenario.
For each fan or pump, you can use the intuitive fan curve to define trigger thresholds and corresponding fan speeds.
