Intel поддержка процессоров

I have sony vaio with itel i3 3110m,
I want to upgrade it to i7.
Please let me know which i7 processor I can use.

Intel HM76 Express chipset processor support

Important: Below is a support list for the HM76 Express chipset, and not a support list for your motherboard, built on that chipset. The chipset is only one of key elements that determine CPU compatibility. Other key factors are: socket type, package type, maximum Thermal Design Power, BIOS version, CPU core name and stepping. For that reason not all motherboards, built on the chipset, will be compatible with all listed processors. Please use the list only as a guidance.

M — Manufacturer’s official CPU support list.
V — Posted by a Visitor.
Please see the «Disclaimer» link at the page bottom for more details.

Support status icons:

— The CPU may be supported. Please check the source of this record to see whether it was posted by a visitor, or was created based on chipset support list.

— The processor is supported.

To determine part numbers for the Intel HM76 Express chipset, we use best guess approach based on CPU model, frequency and features. In some cases our guess may be incorrect. Please use specifications from the compatibility list to confirm processor’s part number before ordering.

Comments

There are 150 comments posted

intel B970

5 Декабря 2013 03:25:13
Posted by: pawel

According to all information I found I had intel B970 CPU ran on this chipset and I have recently upgraded CPU to i3-2350. Both CPUs works well. Update this site, please.

socket g2

11 Июля 2015 05:42:05
Posted by: s.k

i7 2630qm upgrade

2630QM on HM76?

14 Января 2016 19:15:20
Posted by: Alex

It’s not on the list and it’s listed among the CPUs supported by HM65.
Can you confirm that you have 2630QM with HM76 chipset?

2630QM on HM76

1 Июня 2016 04:56:05
Posted by: jammet

yes, I’m using it right now.
Clevo W251EFQ/W270EFQ

2630qm

20 Октября 2017 04:06:19
Posted by: XAKEPCOH

on HM76 memory frequency with 2630qm is 1333 or 1600.

Help me

6 Июня 2022 13:13:40
Posted by: Teringat

Apakah bisa Upgrade sandy bridge B960 core 2 duo to ivy bridge i3 3110M? HM76
Lenovo g400

Processor

14 Февраля 2014 15:30:52
Posted by: Asrock96

Intel Pentium B960 is running also on this chipset

upgrade

15 Сентября 2015 06:31:01
Posted by: WiLD_KiTTy

Made an upgrade from B960 to i3-2330m and i5-2540m all works fine!! 🙂
next upgrade will be i5-3230m or greater

upgrade

23 Ноября 2015 05:34:05
Posted by: WiLD_KiTTy

made a next upgrade to i5-3210m works fine, but Turbo mode isnt supported -.-

Upgrade to i5 3320m

2 Февраля 2016 09:13:29
Posted by: AdrianTudose

Hi, i have intel b970 and i want to upgrade to i5 3320m.
My motherbourd has HM76 chipset. It is possible?
Thanks

upgrade to i5 3320m

31 Марта 2016 14:08:08
Posted by: WiLd_KiTTy

Possible, works fine! 🙂

BIOS

13 Октября 2016 09:07:55
Posted by: Massimo

need to upgrade bios?

Intel Core i3-2350

4 Мая 2014 04:44:09
Posted by: J. D

This CPU is also comp. with this modell.
It’s tested and verifyed!

3740qm?

22 Ноября 2014 17:25:43
Posted by: Ioan

Is 3740qm also compatible?

i3-2330M

30 Декабря 2014 05:55:04
Posted by: Titus RO

i3-2330M work fine also

Processor

18 Января 2015 20:25:47
Posted by: Piter

Hi I have a motherboard Intel HM76 (Panther Point) with Intel Core i7-3610QM Processor. Can I give him an Intel Core i7-3940XM?

12 Мая 2015 13:31:53
Posted by: Heli Correia

Yes, but it will not work in a requiered form, 3940xm is unlocked CPU for overckockers in workstations sameless asus, dell Alienware And others. But will work good.

Upgrade from B960 to i3 2330M/i5-2520m/i5-2330m

5 Февраля 2015 04:39:42
Posted by: WiLd_KiTTy

I have B960 running on Intel panther Point HM76, socket G2/rPGA988B. (HP pav. G6 2026sy)
Is it possible to upgrade in to i3 or i5??

I have searched for a few weeks now and from now on I am quite confused and very frustrated allready..

Waiting for you helpful advice

upgrade to i3-2330m/i5-2540m

14 Августа 2015 19:49:50
Posted by: WiLD_KiTTy

possible and both work, tested!

i have Core i7 2678m i think cpu

17 Января 2018 05:17:26
Posted by: jcmax

can i upgrade to Core i7 2678m.

I3 2328M TO I5 orI7

20 Марта 2019 12:12:57
Posted by: rames

sony viao 1513 cynb e series

Ajuda

23 Марта 2015 13:36:32
Posted by: jefersoncontabeis@hotmail.com

Ol� Amigos, tenho um notebook asus a45a com o processador i5 3210m, gostaria de saber se posso substituir pelo processador i7 3630qm ? vai funcionar?

I5-3210M upgrade to I7-3840QM

15 Мая 2015 02:45:52
Posted by: Kelvin

I have a notebook Fujitsu AH532 with I5-3210M Socket G2. Can I upgrade the CPU to I7-3840QM

HM76 and B800

9 Июля 2015 18:02:17
Posted by: CthulhuFhtagn

Hi. I’m really curious. I’m about to do something really exiting. Can I downgrade i3-3120M to Celeron Dual Core B800? I need the i3 to empower an old computer to do some magic. But is it good the B800 for HM76? Just one website says it’s compatible, but I’d like more opinions. If there happens to be around a helpful expert.

Lenovo Z500

8 Августа 2015 03:55:38
Posted by: Dmitry

hello!
I have notebook (lenovo Z500) on I5-3230M, Can I upgrade the CPU to I7-3630QM?
And needed will be do overclocker of mainboard (in BIOS) ?

Intel� Core� i3 2328M 3M, 2.2 GHz Processor

23 Августа 2015 03:50:24
Posted by: shubham

Intel� Core� i3 2328M 3M, 2.2 GHz Processor upgret to

История CPU Intel

Asus N56VJ CPU Upgrade?

1 Ноября 2015 14:15:45
Posted by: Erick

hi I have asus N56VJ and it has following chipset and CPU

intel Ivy Bridge HM76
with i7 3630QM

will 3940XM work on this type of laptop?

NOte that I did read Heli Correia’s Reply:
«Yes, but it will not work in a requiered form, 3940xm is unlocked CPU for overckockers in workstations sameless asus, dell Alienware And others. But will work good. «

But this confuses me. hes saying it does not work in a requiered form.. REquiered (Required) form. What.

and it is for workstations. Sameless Asus?

Workstations to me tells me «Desktop Computers» Not Laptops.

The only thing comming close to mind of a workstation of a laptop is one that has a Docking station.

Yet he says that it will work in the end.. I am confused.. either it will work and it can possibly be overclocked.. or it doesn’t Plain and simple 🙁

And if my bios wont let me overclock it after putting this processor in. then thats fine I dont care just as long as I can access the turbo features.. and get the max speed when CPU Die is not idle.. and im gamming.. then. .Sweet.

From i3-3110m to i5-3320m

21 Ноября 2015 06:19:29
Posted by: Stefan

Hi i want to know is it good update ?
I have Lenovo G500.

upgrade

23 Ноября 2015 05:42:22
Posted by: WiLD_KiTTy

Yup, I will give you a green light 🙂
you should experience somewhere 15%-20% better performance from CPU it self. but graphics. 10%? performance increase.. Overall: cooler and not much noticable increases.. but trust me, with that entry level laptop the upgrade will be noticable for you!

Lenovo G500: i3-3110m to i5-3320m

9 Января 2016 06:19:31
Posted by: Kamil

Stefan, have u changed i3-3110m to i5-3320 already? I have problem, I have too lenovo g500 with i3-3110m but when I put i5-3320, it doesn’t work. When I turn on laptop there is only lenovo splash screen or laptop is not turning on at all.

I have motherboard chipset intel HM76, BIOS Version: 78CN25WW(V2.03).

Intel поддержка процессоров

@Kamil

31 Марта 2016 14:11:54
Posted by: WiLD_KiTTy

Have you tried to update your bios first and then replaced?

HP-15n200nx

12 Января 2016 03:29:18
Posted by: sander

hi can i upgrade my processor intel core i3 3217u

HM76 chipset, i7 3612q cpu

15 Января 2016 07:30:51
Posted by: Zoltan

I have 2x4gb ram already, but I need to upgrade my system to 16gb (2x8gb) ram. There is a lot of confused conversation about it.
What do you think? Is it possible to upgrade to 16gb ram without any issue?
Will it work well, or is it depends on luck?

lenovo g500 cpu upgrade

17 Июня 2016 04:54:59
Posted by: Ivan Popov

My g500 came with a pentium 2020m. I installed an i7-3632qm and the cpu is ok, but now my discrete graphics doesn’t work. It’s an Amd Radeon 8570m and now it’s not visible in Windows. The laptop is using it’s latest bios and it’s set to switchable graphics.

HP PB 470 G0 upgrade 3230M by 3610QM

14 Августа 2016 02:25:20
Posted by: JF

It works pretty good, almost doubled speed

It�s possible upgrade cpu intel core i3-2328M

3 Сентября 2016 16:59:21
Posted by: Erick W.

Hi, it�s possible upgrade cpu intel core i3-2328M from toshiba satellite c845-sp4334sl. I founded this list where there are many options. It�s possible or not upgrade the cpu?

15-D069wm

21 Ноября 2016 01:00:17
Posted by: johnson

can i upgrade hp 15-D069wm cpu i3 to 3632qm? let me know, thanks in advance.

Intel celeron 1005m lenovo g400

16 Декабря 2016 07:09:07
Posted by: Dimas

can i upgrade intel celeron 1005m to intel core i5 3320m??

11 Января 2017 17:14:48
Posted by: bittech

Wont t work,1005, hm65 chipset
Upgrade with i5 gen2
I tried and did not work
Processor is not supported(1005M upgrade to i5 3230M)

i5-4200M

15 Января 2017 06:59:06
Posted by: vodun

I have HP g6 2230sw with i3-3110M (motherboard HM76), can I use i5-4200M?

i5-4200M

26 Сентября 2019 03:44:03
Posted by: durando87

No. You can’t because is a 4th gen processor.
You can put Intel Core i5-3230M or Intel Core i7-3632QM

Intel HM76 does support this Core i7-3632QM ?

6 Января 2020 12:05:17
Posted by: Hardik

I have sony vaio with itel i3 3110m,
I want to upgrade it to i7.
Please let me know which i7 processor I can use.

Lenovo g500

1 Февраля 2017 03:04:49
Posted by: Alex

Hi! I have a lenovo g500 i7-3612qm 2.1 socket g2 (rPGA),amd hd 8570 and i have a problem i don’t know the motherboard,but i know my chipset is Intel HM76 Express.I want to change the cpu but i don’t know which. i would like the latest and hight-performance possible.Thank’s.

26 Февраля 2017 19:49:44
Posted by: Alex

Hi! I have a lenovo g500 i7-3612qm socket g2 (rPGA) with chipset Intel HM76 Express.I want to change the cpu with one of this :
1.Intel Core i7-3840QM (PGA);
2.Intel Core i7-3920XM;
3.Intel Core i7-3940XM.
I need help choosing!

Alex — lenovo G500

26 Сентября 2019 03:27:51
Posted by: durando87

According your service manual your max upgrade is Intel I7-3632QM. I don’t know if you can put these processor with TDP of 45W. You can try but maybe works or not. Remember, before put new CPU to upgrade the BIOS to the last version.

qosmio x870 (3630qm) with lower processor (2420m)

11 Февраля 2017 13:37:08
Posted by: George

Hi i have a qosmio. My CPU wouldnt start the comupter anymore, just red lights after getting water in the mobo and changing that mobo. I got a new mobo (refurbished from china) and I installed the cpu and it would not start. I had that lower processor lying around so i installed it to test, and it is working, but with limitations :

The laptop screen isnt working; even after changing the lcd dispay. I bought a new connector taht i will install shortly to make sure its not an external component defect.

Other problem : It goes straight past the BIOS screen. I tried every button and everything. It just directly boots to windows, i don’t get a toshiba/ qosmio spashscreen or anything. and no way to get into bios, even after upgrading bios firmware.

On an external display, everything works perfectly fine. be it hdmi or vga, i have no problems at all on an external screen i can game in 1080p with the laptop so im prety sure the GTX670M is still fine (video card).

I would like to have some expert feedback on this. Could this be caused by an incompatible CPU, or should i just point out the fault to a faulty motherboard??

Is there anything i can do to REALLY test the old CPU; its lighting up 2 lights and it starts the computer but all i get is red lights, no display, even the cpu/gpu fan isnt turning. So what could this mean?

Is there some trick to be able to access the bios on an external monitor to try and get it to do a hardware check or something. I tried everything from INSIDE the OS (windows 10) but nothing works.

I was going to try re-installing windows 8 since its what came with the laptop and the drivers i find are better on windows 8.

Thanks for your time! Hope someone can help me

Совместимость процессоров Intel

Замена процессора в ноутбуке зависит от конкретной модели чипсета (северного моста) и установленного в ноутбук процессора.

Intel поддержка процессоров

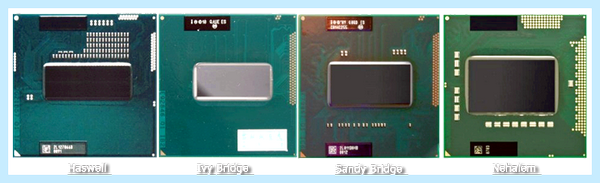

Процессоры в корпусе rPGA (съемные) могут быть заменены в домашних условиях.

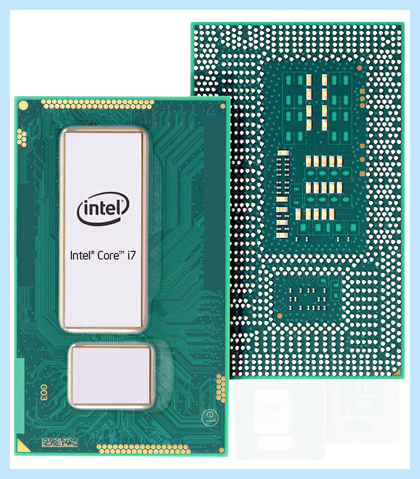

Процессоры в корпусе fcBGA распаяны на материнской плате ноутбука, их замена возможна только при наличии оборудования для BGA пайки.

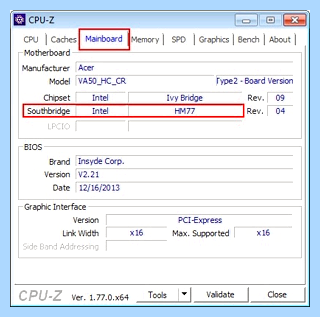

Программа cpu-z

Intel поддержка процессоров

которая поможет Вам с выбором подходящего процессора.

В закладке Mainboard (мат. плата) есть параметр Southbridge, он нам и нужен для подбора подходящего процессора.

Ниже приведён список взаимозаменяемости процессоров ноутбуков Intel, а также их совместимость.

Процессоры Intel® Core™ 1-го поколения

Socket G1 (rPGA988A) под Mobile Intel HM55 Chipset (SLGZS), Intel HM57 Chipset (SLGZR)

Intel поддержка процессоров

Dual Core (32 нм, 35 Вт):

Mobile Celeron: P4500 (2M Cache, 1.86 GHz), P4600 (2M Cache, 2.00 GHz);
Mobile Pentium: P6000 (3M Cache, 1.86 GHz), P6100 (3M Cache, 2.00 GHz), P6200 (3M Cache, 2.13 GHz), P6300 (3M Cache, 2.27 GHz);
Core i3: i3-330M (3M Cache, 2.13 GHz), i3-350M (3M Cache, 2.26 GHz), i3-370M (3M Cache, 2.40 GHz), i3-380M(3M Cache, 2.53 GHz), i3-390M (3M Cache, 2.66 GHz);
Core i5: i5-430M (3M Cache, 2.53 GHz), i5-450M (3M cache, 2.66 GHz), i5-460M (3M Cache, 2.80 GHz), i5-480M (3M Cache, 2.933 GHz), i5-520M (3M Cache, 2.933 GHz), i5-540M (3M Cache, 3.066 GHz), i5-560M (3M Cache, 3.20 GHz), i5-580M (3M Cache, 3.33 GHz);
Core i7: i7-620M (4M Cache, 3.333 GHz), i7-640M (4M Cache, 3.46 GHz).

Quad Core (32 нм, 45-55 Вт):

Core i7M: i7-720QM (6M Cache, 2.80 GHz), i7-740QM (6M Cache, 2.93 GHz), i7-820QM (8M Cache, 3.06 GHz), i7-840QM (8M Cache, 3.20 GHz), i7-920XM (8M Cache, 3.20 GHz), i7-940XM (8M Cache, 3.33 GHz).

Процессоров Intel® Core™ 2-го поколения Sandy Bridge

Socket G2 (rPGA988B) под Mobile Intel HM65 Chipset (SLJ4P), Intel HM67 Chipset (SLJ4N)

Intel поддержка процессоров

Single Core (Sandy Bridge, 32 нм, 35 Вт):

Mobile Celeron: B710 (1.5M Cache, 1.60 GHz), B720 (1.5M Cache, 1.70 GHz), B730 (1.5M Cache, 1.80 GHz).

Dual Core (Sandy Bridge, 32 нм, 17-35 Вт):

Mobile Celeron: B800 (2M Cache, 1.50 GHz), B810 (2M Cache, 1.60 GHz), B815 (2M Cache, 1.60 GHz), B820 (2M Cache, 1.70 GHz), B830 (2M Cache, 1.80 GHz), B840 (2M Cache, 1.90 GHz);
Mobile Pentium: B940 (2M Cache, 2.00 GHz), B950 (2M Cache, 2.10 GHz), B960 (2M Cache, 2.20 GHz), B970 (2M Cache, 2.30 GHz), B980 (2M Cache, 2.40 GHz), B987 (2M Cache, 1.50 GHz);
Core i3: 2308M, 2310M (3M Cache, 2.10 GHz), 2312M, 2328M, 2330E, 2330M (3M Cache, 2.20 GHz), 2348M, 2350M, 2370M;
Core i5: 2410M (3M Cache, 2.90 GHz), 2430M (3M Cache, 3.00 GHz), 2450M (3M Cache, 3.10 GHz), 2510E (3M Cache, 3.10 GHz), 2520M (3M Cache, 3.20 GHz), 2540M (3M Cache, 3.30 GHz);
Core i7: 2620M (4M Cache, 3.40 GHz), 2640M (4M Cache, 3.50 GHz).

Quad Core (Sandy Bridge, 32 нм, 45-55 Вт):

Core i7: 2630QM (6M Cache, 2.90 GHz), 2670QM (6M Cache, 3.10 GHz), 2710QE (6M Cache, 3.00 GHz), 2720QM (6M Cache, up to 3.30 GHz), 2760QM (6M Cache, 3.50 GHz), 2820QM (8M Cache, 3.40 GHz), 2860QM (8M Cache, 3.60 GHz).

Взаимозаменяемость процессоров Интел

Чипсеты HM65, HM67 не поддерживают 22-нм процессоры третьего поколения под названием Ivy Bridge.

Процессоров Intel® Core™ 2-го и 3-го поколения Sandy Bridge / Ivy Bridge

Socket G2 (rPGA988B) под Mobile Intel HM70 Chipset (SJTNV)

Intel поддержка процессоров

Single Core (Sandy Bridge, 32 нм, 35 Вт):

Mobile Celeron: B710 (1.5M Cache, 1.60 GHz), B720 (1.5M Cache, 1.70 GHz), B730 (1.5M Cache, 1.80 GHz).

Процессоры и чипсеты intel 1-8 поколений.

Dual Core (Sandy Bridge, 32 нм, 17-35 Вт):

Mobile Celeron: B800 (2M Cache, 1.50 GHz), B810 (2M Cache, 1.60 GHz), B815 (2M Cache, 1.60 GHz), B820 (2M Cache, 1.70 GHz), B830 (2M Cache, 1.80 GHz), B840 (2M Cache, 1.90 GHz);
Mobile Pentium: B940 (2M Cache, 2.00 GHz), B950 (2M Cache, 2.10 GHz), B960 (2M Cache, 2.20 GHz), B970 (2M Cache, 2.30 GHz), B980 (2M Cache, 2.40 GHz), B987 (2M Cache, 1.50 GHz).

Dual Core (Ivy Bridge, 22 нм, 35 Вт):

Mobile Celeron: 1000M (2M Cache, 1.80 GHz), 1005M (2M Cache, 1.90 GHz), 1020M (2M Cache, 2.10 GHz);
Mobile Pentium: 2020M (2M Cache, 2.40 GHz), 2030M (2M Cache, 2.50 GHz).

  • У владельцев ноутбуков с HM70 есть возможность замены на HM75, HM76, HM77.
    После замены ноутбук будет поддерживать процессоры Intel Core i3, Intel Core i5, Intel Core i7.

Чипсет HM70 не поддерживает процессоры Core™ i3, Core™ i5, Core™ i7! Ноутбук может выключаться через 20-30 минут.

Список процессоров Intel® Core™ 2-го и 3-го поколения Sandy Bridge / Ivy Bridge

Socket G2 (rPGA988B) — Intel HM77 Chipset (SLJ8C), Intel HM76 Chipset (SLJ8E), Intel HM75 Chipset (SLJ8F)

Intel поддержка процессоров

Single Core (Sandy Bridge, 32 нм, 35 Вт):

Mobile Celeron: B710 (1.5M Cache, 1.60 GHz), B720 (1.5M Cache, 1.70 GHz), B730 (1.5M Cache, 1.80 GHz).

Dual Core (Sandy Bridge, 32 нм, 17-35 Вт):

Mobile Celeron: B800 (2M Cache, 1.50 GHz), B810 (2M Cache, 1.60 GHz), B815 (2M Cache, 1.60 GHz), B820 (2M Cache, 1.70 GHz), B830 (2M Cache, 1.80 GHz), B840 (2M Cache, 1.90 GHz);
Mobile Pentium: B940 (2M Cache, 2.00 GHz), B950 (2M Cache, 2.10 GHz), B960 (2M Cache, 2.20 GHz), B970 (2M Cache, 2.30 GHz), B980 (2M Cache, 2.40 GHz), B987 (2M Cache, 1.50 GHz);
Core i3: 2308M, 2310M (3M Cache, 2.10 GHz), 2312M, 2328M, 2330E, 2330M (3M Cache, 2.20 GHz), 2348M, 2350M, 2370M;
Core i5: 2410M (3M Cache, 2.90 GHz), 2430M (3M Cache, 3.00 GHz), 2450M (3M Cache, 3.10 GHz), 2510E (3M Cache, 3.10 GHz), 2520M (3M Cache, 3.20 GHz), 2540M (3M Cache, 3.30 GHz);
Core i7: 2620M (4M Cache, 3.40 GHz), 2640M (4M Cache, 3.50 GHz).

Dual Core (Ivy Bridge, 22 нм, 35 Вт):

Mobile Celeron: 1000M (2M Cache, 1.80 GHz), 1005M (2M Cache, 1.90 GHz), 1020M (2M Cache, 2.10 GHz);
Mobile Pentium: 2020M (2M Cache, 2.40 GHz), 2030M (2M Cache, 2.50 GHz);
Core i3: 3110M (3M Cache, 2.40 GHz), 3120ME (3M Cache, 2.40 GHz), 3120M (3M Cache, 2.50 GHz), 3130M (3M Cache, 2.60 GHz);
Core i5: 3210M (3M Cache, 3.10 GHz), 3230M (3M Cache, 3.20 GHz), 3320M (3M Cache, 3.30 GHz), 3340M (3M Cache, 3.40 GHz), 3360M (3M Cache, 3.50 GHz), 3380M (3M Cache, 3.60 GHz);
Core i7: 3520M (4M Cache, 3.60 GHz), 3540M (4M Cache, 3.70 GHz).

Quad Core (Sandy Bridge, 32 нм, 40-55 Вт):

Core i7: 2630QM (6M Cache, 2.90 GHz), 2670QM (6M Cache, 3.10 GHz), 2710QE (6M Cache, 3.00 GHz), 2720QM (6M Cache, up to 3.30 GHz), 2760QM (6M Cache, 3.50 GHz), 2820QM (8M Cache, 3.40 GHz), 2860QM (8M Cache, 3.60 GHz), 2920XM (8M Cache, 3.50 GHz), 2960XM (8M Cache, 3.70 GHz).

Quad Core (Ivy Bridge, 22 нм, 35-55 Вт):

Core i7: 3610QM (6M Cache, 3.30 GHz), 3612QM (6M Cache, 3.10 GHz), 3630QM (6M Cache, 3.40 GHz), 3632QM (6M Cache, 3.20 GHz), 3720QM (6M Cache, 3.60 GHz), 3740QM, 3820QM (8M Cache, 3.70 GHz), 3840QM (8M Cache, 3.80 GHz), 3920XM (8M Cache, 3.80 GHz), 3940XM (8M Cache, 3.90 GHz).

Intel HM76 Chipset и Intel HM75 Chipset не поддерживают процессоры Core i7-3920XM , Core i7-3940XM.

Процессоры Intel® Core™ 4-го поколения Haswell

Socket G3 (rPGA 946B/947, FCPGA 946) под Intel HM87 Chipset (SR17D), Intel HM86 Chipset (SR17E)

Intel поддержка процессоров

Dual Core (Haswell, 22 нм, 37 Вт):

Mobile Celeron 2950M (2M Cache, 2 GHz);
Mobile Pentium 3550M (2M Cache, 2.3 GHz);
Core i3: 4000M (3M Cache, 2.4 GHz), 4100M (3M Cache, 2.5 GHz);
Core i5: 4000M (3M Cache, 2.5 GHz), 4300M (3M Cache, 2.6 GHz), 4330M (3M Cache, 2.8 GHz);
Core i7: 4600M (4M Cache, 2.9 GHz).

Dual Core (Haswell Refresh, 22 нм, 37 Вт):

Mobile Celeron 2970M (2M Cache, 2.2 GHz);
Mobile Pentium 3560M (2M Cache, 2.4 GHz);
Core i3: 4010M (3M Cache, 2.5 GHz), 4110M (3M Cache, 2.6 GHz);
Core i5: 4210M (3M Cache, 2.6 GHz), 4310M (3M Cache, 2.7 GHz), 4340M (3M Cache, 2.9 GHz);
Core i7: 4610M (4M Cache, 3 GHz).

Quad Core (Haswell, 22 нм, 37-57 Вт):

Core i7: 4700MQ (6M Cache, 2.4 GHz), 4702MQ (6M Cache, 2.2 GHz), 4800MQ (6M Cache, 2.7 GHz), 4900MQ (8M Cache, 2.8 GHz), 4930MX (8M Cache, 3 GHz).

Quad Core (Haswell Refresh, 22 нм, 37-57 Вт):

Core i7: 4710MQ (6M Cache, 2.5 GHz), 4712MQ (6M Cache, 2.3 GHz), 4810MQ (6M Cache, 2.8 GHz), 4910MQ (8M Cache, 2.9 GHz), 4940MX (8M Cache, 3.1 GHz).

Процессоры Intel® 5-го поколения Broadwell

Intel поддержка процессоров

Компания Intel® производит мобильные процессоры с архитектуры Broadwell только в BGA-корпусе (не используя сокет, процессоры распаиваются непосредственно на материнской плате).
По этой причине возможность замены BGA процессоров в домашних условиях отсутствует.

  • Замена процессоров в ноутбуке с индексами: «U» (например i5-7200U), «N» (например Pentium N3710) невозможна.
    Эти процессоры производятся только в корпусе BGA.

Перед заменой процессора на более мощный, проверьте соответствие системы охлаждения с тепловыми характеристиками устанавливаемого процессора.

Процессор с увеличенным тепловым пакетом (TDP) даст дополнительную нагрузку на блок питания ноутбука. Рекомендуется приобрести блок питания с повышенной мощностью.

List of Intel CPU families

The list below includes only Intel families, referenced in CPU support lists on our website, and for that reason can be incomplete.

Family Cores Threads Frequency Turbo
Frequency		 FSB Last level
cache
Atom 1 — 16 1 — 16 600 MHz — 2.4 GHz up to 2.6 GHz 400 — 667 MHz up to 16 MB L2
Celeron 1 — 4 1 — 4 266 MHz — 2.8 GHz up to 2.9 GHz 66 — 1066 MHz 4 MB L2
Celeron D 1 1 2.13 — 3.6 GHz 533 MHz up to 512 KB L2
Celeron Dual-Core 1 — 2 1 — 2 1.6 — 3.3 GHz 800 MHz up to 2 MB L3
Celeron M 1 1 600 MHz — 2.27 GHz 400 — 800 MHz up to 1 MB L2
Core 2 Duo 2 2 1.6 — 3.33 GHz 800 — 1333 MHz up to 6 MB L2
Core 2 Duo Mobile 2 2 1.07 — 3.07 GHz 533 — 1066 MHz up to 6 MB L2
Core 2 Extreme 2 — 4 2 — 4 2.67 — 3.2 GHz 1066 — 1600 MHz up to 12 MB L2
Core 2 Extreme Mobile 2 — 4 2 — 4 2.53 — 3.07 GHz 800 — 1066 MHz up to 12 MB L2
Core 2 Quad 4 4 2.13 — 3.17 GHz 1066 — 1333 MHz up to 12 MB L2
Core 2 Quad Mobile 4 4 2 — 2.27 GHz 1066 MHz up to 12 MB L2
Core 2 Solo 1 1 1.07 — 1.4 GHz 533 — 800 MHz up to 3 MB L2
Core Duo 2 2 1.07 — 2.33 GHz 533 — 667 MHz 2 MB L2
Core Solo 1 1 1.07 — 2 GHz 533 — 667 MHz 2 MB L2
Core i3 2 — 4 4 2 — 4.2 GHz up to 4.6 GHz up to 8 MB L3
Core i3 Mobile 2 — 4 4 1 — 3.6 GHz up to 4.1 GHz up to 6 MB L3
Core i5 2 — 6 4 — 6 1.7 — 4 GHz up to 4.6 GHz up to 9 MB L3
Core i5 Mobile 2 — 6 4 — 8 700 MHz — 3.3 GHz up to 4.3 GHz up to 9 MB L3
Core i7 4 — 8 8 — 16 1.8 — 4.3 GHz up to 5 GHz up to 20 MB L3
Core i7 Extreme Edition 4 — 10 8 — 20 3 — 3.6 GHz up to 4 GHz up to 25 MB L3
Core i7 Mobile 2 — 6 4 — 12 1 — 3.5 GHz up to 4.9 GHz up to 12 MB L3
Core i7 Mobile Extreme Edition 4 8 2 — 3.1 GHz up to 4 GHz 8 MB L3
Core i9 8 — 16 16 — 32 2.1 — 4 GHz up to 5 GHz up to 22 MB L3
Core i9 Extreme Edition 14 — 18 14 — 36 2.6 — 4 GHz up to 5 GHz up to 24.75 MB L3
Itanium 2 1 — 8 1 — 16 900 MHz — 2.67 GHz up to 1.87 GHz 400 — 667 MHz up to 32 MB L3
Mobile Celeron 1 — 4 1 — 4 266 MHz — 2.5 GHz up to 2.8 GHz 66 — 800 MHz up to 4 MB L2
Mobile Celeron Dual-Core 1 — 2 1 — 2 1 — 2.4 GHz 533 — 800 MHz up to 2 MB L3
Mobile Pentium 1 — 4 1 — 4 75 MHz — 2.41 GHz up to 3.1 GHz 50 — 66 MHz 1 MB L3
Mobile Pentium 4 1 1 — 2 2.3 — 3.47 GHz 400 — 533 MHz up to 1 MB L2
Mobile Pentium 4-M 1 1 1.2 — 2.6 GHz 400 MHz 512 KB L2
Mobile Pentium III 1 1 400 MHz — 1 GHz 100 MHz 256 KB L2
Pentium 1 — 4 1 — 8 60 MHz — 2.41 GHz up to 3.2 GHz 50 — 66 MHz up to 6 MB L3
Pentium 4 1 1 — 2 1.3 — 3.8 GHz 400 — 800 MHz up to 2 MB L2
Pentium 4 Extreme Edition 1 2 3.2 — 3.73 GHz 800 — 1066 MHz 2 MB L3
Pentium D 2 2 2.67 — 3.6 GHz 533 — 800 MHz up to 4 MB L2
Pentium Dual-Core 2 2 — 4 1.2 — 4 GHz up to 1.8 GHz 800 — 1066 MHz up to 6 MB L3
Pentium Dual-Core Mobile 1 — 2 1 — 4 1.1 — 2.6 GHz up to 3.1 GHz 533 — 800 MHz up to 4 MB L3
Pentium Extreme Edition 2 4 3.2 — 3.73 GHz 800 — 1066 MHz up to 4 MB L2
Pentium II 1 1 233 — 450 MHz 66 — 100 MHz up to 512 KB L2
Pentium III 1 1 450 MHz — 1.4 GHz 100 — 133 MHz up to 512 KB L2
Pentium M 1 1 600 MHz — 2.27 GHz 400 — 533 MHz up to 2 MB L2
Pentium MMX 1 1 166 — 233 MHz 66 MHz 32 KB L1
Pentium Pro 1 1 150 — 200 MHz 60 — 66 MHz up to 1 MB L2
Xeon 1 — 56 1 — 112 1 — 4.4 GHz up to 4.5 GHz 400 — 1600 MHz up to 77 MB L3
Xeon Phi 57 — 72 1 — 288 1.05 — 1.5 GHz up to 1.7 GHz up to 36 MB L2
Xeon W 4 — 28 4 — 56 2.3 — 4.1 GHz up to 4.8 GHz up to 38.5 MB L3

Copyright 2006 — 2017, Gennadiy Shvets

Похожие статьи

  • Intel pentium какое поколение

    После числового идентификатора в Core i3-i9 может стоять буква, обозначающая линейку. На мобильных устройствах: Как узнать какого поколения процессор…

  • Intel management engine interface drivers

    Supported chipsets: Intel Z490, Z390, Z370, X299, Z170, Z270, Z270, H170, B250, B150. (100/200/300/400 Series) Supported OS: Windows 10 (32/64) Date &…

  • Intel со встроенной графикой

    Цены на процессоры со встроенной графикой за последнее время выросли. Поэтому нелишним будет рассмотреть вариант с процессором без встройки и бюджетной…

Нравится: 0
Оставить комментарий

Ваш адрес email не будет опубликован. Обязательные поля помечены *

Что будем искать? Например,Человек

Мы в социальных сетях
