M17 R4 — Checking media presence. — No media present
I’m one of the «lucky few» who is considered «essential» at work. I’m trying to solve a problem with an Alienware M17 R4 being used remotely by a colleague.
It’s the proverbial «It was working on Friday but won’t work on Monday» scenario. Over the weekend, the machine seems to have tried to boot itself but could not. I’m finding the symptoms bizarre. I’ve tried searching for solutions, however, most of the time there is no final solution or I’ve already tried it.
- Machine hardware configuration
- DRIVES (both physically and as seen in the BIOS)
- Drives 1-2: None
- Drive 4: HGST 1TB
- SSD-1, -2: None
- SSD-3: Samsung 500GB
- BIOS
- v1.2.3 (my colleague has an aversion for BIOS updates) :-/ See more below.
- Reset to Default makes no difference
- Boot List Option: UEFI
- Secure Boot: Enabled
- Boot Option 1: NIC IPV4
- Boot Option 2: NIC IVP6
- Boot Option 3: Windows Boot Manager
- System date/time are correct, suggesting it’s not a CMOS battery issue
- Drives appear in BIOS as expected
- Drives appear in Intel Rapid Storage as expected. This is just a double-check; it’s not actually configured in RAID
- Drives are NOT seen in the Boot tab
- When AutoSupport kicks-in, no issues are found
- If I rearrange the boot order, putting Windows Boot Manager on top, within a reboot or three it reverts to the bottom of the order
- Attempts to boot from a Windows Media Creation Tool fail; nothing but a blank screen is seen. This is just a test as I’m not ready to reinstall.
- Attempts to boot with a non-bootable USB drive inserted fail as above. This makes updating the BIOS via Boot Options (F12) impossible
- Inserting the BIOS-containing USB drive while in Boot Options and then selecting BIOS Flash Update puts a cursor in the upper-left corner of a blank screen and goes no further
- I’m reluctant to open-up the machine because some dufus stripped the head on a bottom panel screw. I wish all companies used Torx! I’ll probably have to use a Dremel to make the Phillips head into a slotted head.
I’ve run out of ideas. Can anyone think of anything else for me to check or try?
Checking Media Presence Error an Easy thing to Troubleshoot
Checking media presence error on startup means the computer is attempting to boot from a source it cannot reach. This may happen when the boot file on the hard disk is missing, corrupted, or when the computer attempts to boot from the network and is unable to connect.
Media presence errors almost always require troubleshooting of some sort, and depending on the BIOS settings, it may be as simple as re-ordering the boot priority, or as complicated as recovering a boot file.- Checking Media Presence: Media Present and No Media Present
- Checking Media Presence – Media Present:
- Checking Media Presence Error: No Media Present
- Following the steps below should help with the error:
Checking Media Presence: Media Present and No Media Present
Checking Media Presence – Media Present:

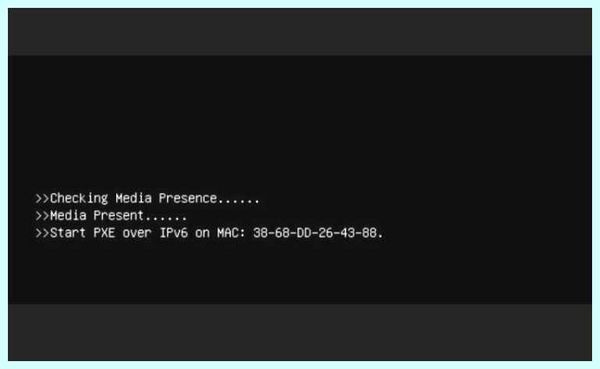

When you startup your computer and encounter an error that reads: Checking Media Presence followed by the state “media present” you will commonly also find it saying “starting PXE” over IPv4 (internet protocol version four) or IPv6 (internet protocol version six).
PXE stands for “Pre boot Execution Environment” and relates to the checking media presence error because it allows the computer to boot from an internet connection, including a server on a network, before it tries to booting the operating system on the local hard disk drive.
To understand the significance of PXE to the boot process, it is necessary to define the following terms:- NIC– stands for Network Interface Card, and it is an expansion card installed on the motherboard which allows the computer to connect to a network. It is designed for a specific type of network and protocol.
- LAN – stands for Local Area Network and is a computer network covering a relatively small area: a room, a building, or small group of buildings. Even though LAN’s are small, multiple LAN’s can be connected to one another.
- Jumper – A jumper is a small connector which fits over protruding pins on the motherboard, and can be used to configure different parameters on the board
A PXE-enabled workstation uses a jumper to connect the NIC directly to the LAN. This keeps the workstation connected to the network at all times, even when the power to the machine is off.
Having a computer boot using PXE is useful in situations where an administrator must frequently interact with machines on a remote basis. The network administrator does not have to visit each specific workstation physically and be present to manually initiate the boot process. Software solutions including operating systems and diagnostic tools can be loaded onto the device from a server on the network.
If you have a home environment where you do not routinely use the remote functionalities of a pre boot execution environment, having the computer boot from PXE should be the last priority in the BIOS.
There are three main things to try during the troubleshooting process to ensure the machine is booting from your disk and not from the network if you are receiving a checking media presence error:
- Enable your boot device
- Disable Wake on LAN in the BIOS
- Update the BIOS
Enable your boot device
- Upon startup, repeatedly press the key indicated onscreen to enter setup
- Enter the security menu and select secure boot configuration
- Acknowledge the warning when proceeding into secure boot configuration and disable secure boot
- Enable Legacy support, accept changes, and exit using the option “exit and save changes”
- Power computer off when it restarts
- Turn computer back on and select the option to have it boot from disk
Disable Wake on LAN in BIOS
- Upon startup, repeatedly press the key indicated onscreen to enter setup
- Locate the “Wake on LAN” setting. It is most often found under a tab called “Power” or “advanced settings”
- Change the “Wake on LAN” setting so the value lists it as “disabled”
- Exit using the option “exit and save changes”
- Check to see if this has fixed the issue where you receive the checking media presence error
Update the BIOS – Please be aware this is an advanced troubleshooting procedure, and the steps necessary to complete it successfully vary widely from manufacturer to manufacturer. If an update to the BIOS fails, it may be necessary to use a recovery utility to restore missing or corrupted files before you are able to boot your computer successfully again.
- Open the start menu and type “msinfo” into the search bar.
- When the window pops up, copy everything below your processor information to a location where you will be able to refer to it: copy to a text file and print, or handwrite the information on a sheet of paper.
- Ensure you know whether your computer was bundled, pre-assembled, or assembled from separate components. You don’t want to make changes to the BIOS which will not work with the rest of the components on your motherboard because the overwrite will cause other, more serious errors.
- If you are updating the BIOS on a laptop, fully charge the laptop and plug it into a power supply before beginning
- If you are updating a desktop, it is highly recommended to use some type of UPS, or, uninterruptible power supply so it does not lose power in the middle of the process in case of a power outage.
- If you do not feel comfortable undertaking an update of the BIOS on your own, take your computer to a professional who will be able to troubleshoot the errors you are receiving.
Checking Media Presence Error: No Media Present

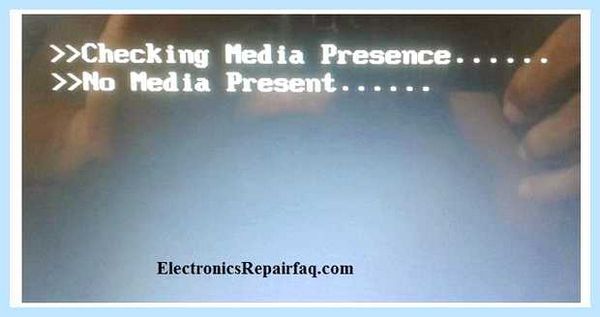

When you receive a “no media present” error from your computer when you start it up, it means your computer cannot detect a hard disk drive from which to boot.
There are a few possibilities as to why this has happened:
- Your computer is attempting to execute a boot from the wrong drive
- Your hard disk is damaged and the boot file cannot be accessed
- The boot file is not being recognized from your hard drive
Computer is trying to boot from the wrong drive:
If you have more than one hard drive, whether it is a hard disk or an SSD, your computer may be trying to execute the boot process from the wrong drive, including thumb drives and other devices connected by USB.
Unplug and disconnect all drives except your main drive, and make sure your BIOS settings are configured to have the computer boot from the hard drive you know is your main drive.Checking media при включении ноутбука lenovo
Damaged disk drive:
If the computer where you are receiving the checking media presence no media present error is a laptop, and it recently endured an impact such as being dropped, mishandled or collided with, then there is a possibility the hard disk inside the computer has been damaged.
If the spinning disk is not working properly, the computer may be unable to access the boot record in the hard drive. Replace the hard drive, restore your files from an external backup, and carry on, being more careful to protect your laptop in the future.
Boot file is not recognized on the hard disk:
If you have an optical drive on your computer, your best option is to reconfigure your BIOS settings to boot first from a disk, then from the hard disk, and finally from the network over IPv4 or IPv6.
Use a Linux boot CD to get into your machine, and if you can see an obvious problem, such as the BIOS settings are configured to prompt the machine to first attempt to boot over the network, and you do not have the capability of booting your computer over the network, then reset the settings to boot from the main drive.
If something else is wrong that you know is beyond your skill set, or you cannot identify where there is a problem, take your computer to a professional to have them assist in the troubleshooting process.
Media Presence Dell
Media presence errors from a Dell BIOS are almost always due to the priority of boot locations being out of order, or secure boot is enabled in the BIOS settings.
|| Checking media presence fix || checking media presence error in Acer desktop Computer||ALL IN ONE
Go into setup on startup and make sure that the computer is set to boot from the hard disk first and foremost and that the option to boot from the network, regardless of whether it is over IPv4 of IPV6, is lowered in priority so the BIOS will not attempt to use the network when booting.
While in the setup menu, make sure you have secure boot disabled.
Media Presence Alienware
Media presence errors from an Alienware, much like a regular Dell BIOS, are almost always due to boot locations being misordered in priority, or secure boot being enabled.
Restart your computer and upon startup go into the setup menu of the BIOS. Make sure that the computer is set to boot from the hard disk first and foremost, and that the option to boot from the network, regardless of whether it is over IPv4 of IPV6, is lowered in priority so the BIOS will not attempt to use the network when booting.
After you have verified the computer is trying to boot from the correct location, make sure secure boot is disabled before exiting.Media Presence Windows 10
The issue with media presence has less to do with the operating system than the BIOS settings.
Following the steps below should help with the error:
- Enter the setup menu on startup
- Verify the boot priority (hard disk before network)
- Ensure secure boot is disabled in the BIOS
- Exit and save changes upon exiting
Conclusion:
Normally a checking media presence error is an easy thing to troubleshoot. If it says media is present, your computer is most likely trying to boot from the network first and when it cannot make a connection it defaults back to booting from the disk inside the computer, which is where it should be looking first.
When the error comes back with “no media present” it means the computer cannot locate the disk to boot from, either it things a USB drive or other peripheral drive should contain the boot file and it is looking there instead of at your main drive, or the disk is damaged and the computer cannot read the boot file.
Make sure you have the settings in your BIOS configured so the computer is looking at your main drive first, secure boot is disabled, and it is only attempting to boot over the network as a last resort. If you are experienced with computers and you are comfortable updating your BIOS, that is another solution to a boot error.
This is not recommended for everyone and if you are experiencing issues out of your range of ability, then you should take your computer to a professional and have them take a look at the BIOS errors you are encountering when you attempt to start up your computer.
How to Fix Checking Media Presence Error in Simple Steps?
It’s common to see a “checking media presence” error as soon as you turn on your PC. Well, there are several reasons behind this error, the most common one is when your PC tries to boot up from a source which is unavailable at the time. Usually, this type of error occurs when your computer tries to boot from your local network instead of your storage device. Here in this guide, we will lay out some of the most working methods to get rid of this error.
But before we start our troubleshooting process, it’s good to learn about this error first, what are causes behind this error are, and how we can adopt the right strategies to prevent this error in the future.
What is Checking Media Presence Error?
Let’s start from the basics at this stage. As you know there are different types of options to boot your computer. You can boot through a hard drive, USB, or local network, etc. Checking media presence error occurs when the computer cannot detect the bootable device or the boot file is missing from your drive.
At the error screen, you would come across the “Media Present” or “No Media Present” usually, this booting error would cause the wrong boot order on the PC and may also corrupt the system files.

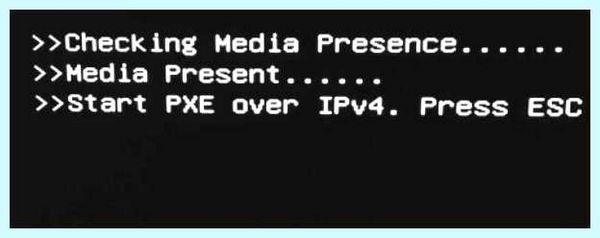

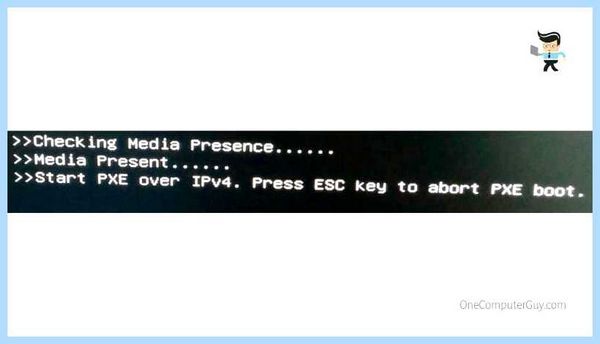

In most cases, you’ll see a series of commands on your screen as shown in the image below:

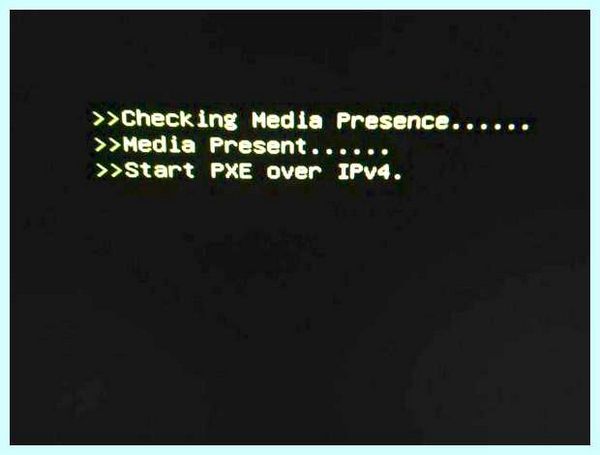

As you can see in the image above, there is a line with “PXE over IPv4” which shows that your computer is trying to boot from an internet connection. So instead of trying to boot up from a local hard drive, the system is trying to boot up from a local network.
In our case, we want our system to boot from our local hard drive, and not from the local network. So, we have to fix this issue by following some of the proven methods.
How to Fix Checking Media Presence Error Windows 10/8/7
1- Rearranging the Boot Menu
There are so many options available to boot from, and this error occurs when the computer is trying to boot from the wrong device. So, you have to set the boot priority for each device connected to your computer.
If the hard drive is on top of the boot order, the computer will try to boot first from the hard drive and then it will move on to another option if it doesn’t find any operating system. It’s simple to upgrade the BIOS with just a few steps:
- Press the BIOS setup button during the boot-up process.
- Go to the boot menu tab to see the bootable devices and their order.
- Keep the drive you want to boot at the top
- Save the settings and exit
- Please restart the computer to check whether it works or not
- Note that every motherboard brand has a different interface for the boot priority section.
Checking #media #presence in #windows10 : fixed in 20sec

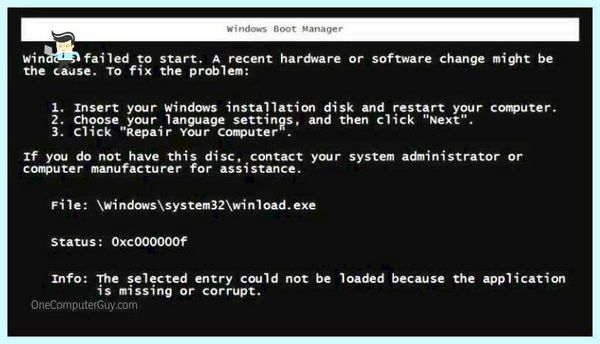

2- Recovering Boot Files
If rearranging the boot menu won’t work for you, there this could be due to some missing or corrupt boot files. One way is to recover your lost file using the Windows Repair console. Another way around is to reinstall your Windows 10 from scratch.
Go to the boot menu during the startup process, and there will be a list of bootable devices that appear in front of you. All you need to do is select the CD or USB as your first priority to install a fresh copy of Windows.
3- Checking the Health of Your Drive
If the steps mentioned above won’t work for you, the system may have some serious problems. Just check whether your hard drive or SSD is connected correctly to your CPU or not.
Disconnect and reconnect the hard drive. Dust residing inside the hard drive connectors could be causing the hard drive or SSD to disconnect over time. Just clean it with a soft brush.
If you are using an old hard drive, then it may be about to fail sooner or later. The hard drive comprises spindles, and each spindle is a collection of disks. When it faces a slight impact, it could result in the failure of a hard drive.
It’s better to copy your important data from your hard drive and move it to an SDD. To be honest, SSDs are cheaper now and are highly durable as compared to HDDs as they are no mechanical parts inside an SSD.
4- Disable Network Boot
If the problem is still there aren’t solved, you should disable the network boot in the BIOS setup. All you need to do is to follow these steps:
- Enter into your BIOS.
- Go to Security Settings, here you will see an option for Secure Boot. Disable this option.
- After disabling Secure Boot, change UEFI mode to Legacy
- Now, look for Network Boot in BIOS settings, and disable it.
- Apply the settings and restart your computer.
5- Update BIOS
If you are getting checking media fail in Windows 10, then you have to update the computer’s BIOS. Updating your BIOS is essential because this error causes severe damage to the system. To update the BIOS, you need to follow:
- Back up data as errors in updating can cause permanent damage to data
- Don’t turn off and restart the computer during updates
- Keep your computer in a stable environment to prevent power breakdown
- Update after connecting the laptop to the charger and don’t unplug during the update
How to get into BIOS in Windows 10?
If you want to configure the BIOS settings in Windows 10, then you need to follow:
- Go to Settings
- Click on Update and Security
- Click on the Recovery button in the side menu
- Click on Restart Now Button in the Advanced startup
- After restart, a blue screen appears having a different option; just click on troubleshoot
- Select Advanced options
What is a BIOS setup?
BIOS is an essential feature that is pre-installed on your motherboard and can be used to control different types of hardware connected to your PC. It’s like the backend where you manually control different peripherals installed on your motherboard.
What is the difference between BIOS and UEFI?
BIOS is a bit of low-level code that is stored in non-volatile memory. Computer systems use it to manage hardware and load a particular OS over another operating system. UEFI stands for universal extensible firmware interface, which has become standard for computer systems that have installed the latest versions. It offers support for advanced features like GUI and even mouse support.
How to Access The BIOS?
BIOS is usually accessed with the help of the BIOS setup utility. It can be accessed in several ways, depending on the computer and the motherboard. You can follow the below steps to access the BIOS setup utility:
- Restart the computer where you can switch on the computer system, and you need to be aware of getting access to BIOS, which is free from all types of OS. It is because the BIOS setup is the part of the motherboard of the computer system/
- The message would vary from one computer to another system. It contains the keys that the user requires to press entering BIOS. There would be an option come such as Entering Setup that would appear in starting few seconds to turn on the computer system.
- You can quickly enter the keys as given by the last message to access BIOS. You must enter the BIOS key for accessing it several times for entering into BIOS. Don’t hold down the key or press it many times. Restart the computer system and try to get access.
Final Thoughts
We hope you now have enough knowledge to fix checking media presence or without media presence. Troubleshooting media presence error is very simple, you can even get rid of this error by rearranging the boot menu in your BIOS by selecting your hard drive as “first boot priority”.
If you are installing Windows and come up with a checking media presence error, then you have to set your CD-ROM/DVD or USB as your first boot priority in BIOS. Also, keep in mind that if you end up with no media present, then this could be due to the fact that your system was unable to find any device to boot from.
FAQs
How you can fix media presence errors in HP/MSI/Lenovo ThinkCentre PC?
You’ll need to follow the same procedure to get rid of this error. Restart your PC, and once the HP, MSI, or Lenovo logo appears on the screen, press the BIOS button.
The key to enter into BIOS is different for HP, MSI, and Lenovo. However, the most often used keys are F1, F2, or F10.
Once you are inside the BIOS menu, navigate to the Boot option and select the “UEFI Boot”. Now set the Boot Priority to Hard Disk first, and then select “Save & Exit”
How do I fix checking media presence media present start PXE over IPv4?
PXE boot happens when your system tries to boot up from the IPv4-based network. You can easily fix this issue by navigating to your “BIOS” and then selecting the “Security” Tab. Once you are there, select the “Secure Boot” and disable it.
The next step is to head over to the “Legacy Boot” and then disable that as well. Save these settings and then exit the BIOS.
