What Is Fatal System Error & How Do You Fix It On Windows [MiniTool Tips]

You know there are different kinds of Windows errors that can appear while you’re using a computer. Some errors are followed by an error number and a short error message to describe the problem you’re your system runs into. Well, a fatal system error means that the error shows up on your system is serious and it may cause system crash & BSOD.

What Is Fatal System Error

Literally, fatal system error refers to a serious and terrible system error that will damage your system and may lead to data loss. A fatal system error is also known as a stop error, system crash, kernel error, or bug check. The fatal system error will show up whenever your operating system stops working (can’t operate safely).

There are many people discussing Windows 10 fatal system error. Before talking about it, I’d like to introduce system error briefly in advance.

If you need to back up system, recover files, or troubleshoot disk problems, MiniTool Solution can be a good assistant.

What Is System Error Code

The system error code is also called error code or an operating system error code; it actually refers to the error number which is followed by a short error message in some cases. The error code appears in Windows to inform users, especially the developers that there’s a particular problem showing up. System error code contains many predefined error codes and error messages that are created by software programmers to tell other people when they are experiencing a problem.

In other words, the system describes the issue it has currently by giving an error code in order to let people, especially the software developers, know what’s happening. In this way, they may figure out a way to fix it ASAP!

Note: The system error code in Windows is not the same as a Windows STOP code, a POST code, an HTTP status code, or a Device Manager error code. The system error codes are generic so they can be applied to different circumstances. What’s more, the same Windows 10 system error may be used in a lot of different cases to show you what problem you have.

Just as its name implies, the fatal system error refers to the one which is terrible and may lead to serious problems like the blue screen of death (BSOD). A fatal system error may occur suddenly due to a kernel-mode driver with either the KeBugCheck or KeBugCheckEx function.

Related reading:

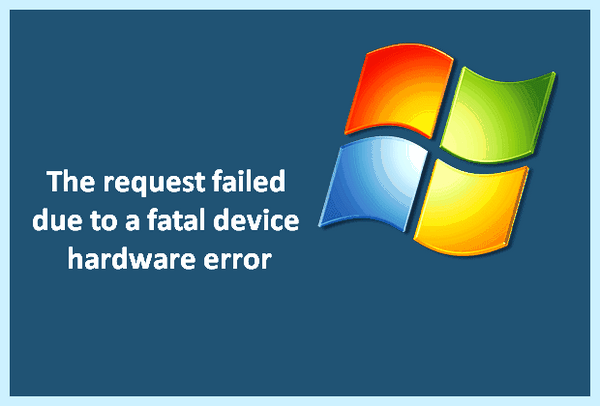

Many people reported they run into a fatal device hardware error: the request failed due to a fatal device hardware error, you should read the following link carefully to know how to deal with it.

Easy Fix: The Request Failed Due To A Fatal Device Hardware Error

I find the request failed due to a fatal device hardware error is not a rare problem, so I decided to dedicate the best solution for you.

Fatal System Error c000021a

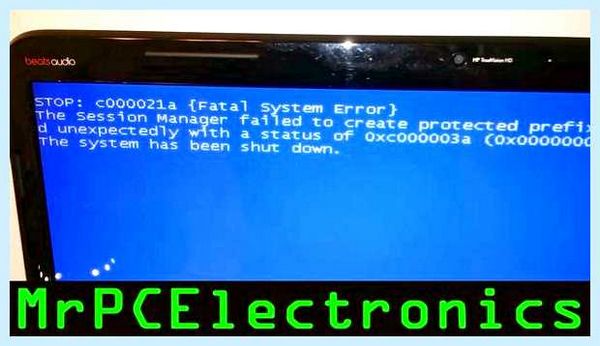

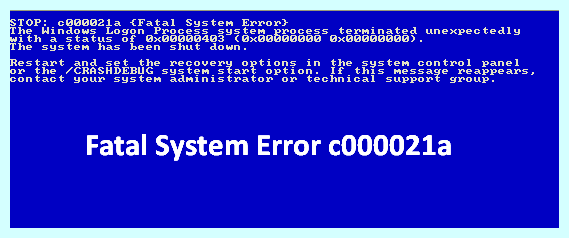

Let’s take a look at the fatal system error blue screen c000021a, which is one of the most popular fatal system errors you may encounter.

STOP: c000021a

The Windows Logon Process system process terminated unexpectedly with a status of 0x00000403 (0×00000000 0×00000000).

The system has been shut down.

Restart and set the recovery options in the system control panel or the /CRASHDEBUG system start option. If this message reappears, contact your system administrator or technical support group.

The exact error message of Windows STOP c000021a Fatal System Error may be slightly different. But you need to realize what happened when this blue screen fatal error shows up on your PC: the Windows kernel has detected that either Winlogon.exe or Csrss.exe service processes went wrong (have stopped responding or have failed to load). The system will be stopped immediately and the corresponding fatal system error message will be shown on the PC screen.

Main reasons for causing fatal error c000021a:

A hardware failure occurs (for instance, the RAM is faulty).
Hardware drivers are corrupted or missing.
The Windows service pack is not installed properly.
Too many invalid and bad registry keys are found.
There’s trouble with the Power Supply Unit (PSU).
Windows System Restore is not working while rolling back.
Kernel level conflicts are caused by third-party programs or applications.
The system files are corrupted or missing because of virus/malware or improper shutdown.

Main solutions to fixing Windows fatal error c000021a:

Take out the battery and put it back again.
Update the computer device drivers to the latest versions.
Execute CHKDSK command in Command Prompt window.
Arrange a test on your computer RAM or swap it out.
Run a full scan of the systems registry.
Boot Windows into Last Known Good Configuration.
Boot PC to some external Media.
Restore the system to a previous state by making use of System Restore.
Uninstall the programs and applications that you have installed on PC recently.
Use Windows Startup Repair to scan, detect, and repair problems.
Replace the Power Supply Unit (PSU).
Repair from the Windows disk (for Windows XP users).
Backup files and reinstall the Windows system. This is the trump card, but also the last resort.

Attention!

The CHKDSK command may delete your files sometimes according to users’ feedback. If you want to get them back, you should read this page carefully since it tells you how to recover data after CHKDSK in two useful ways.

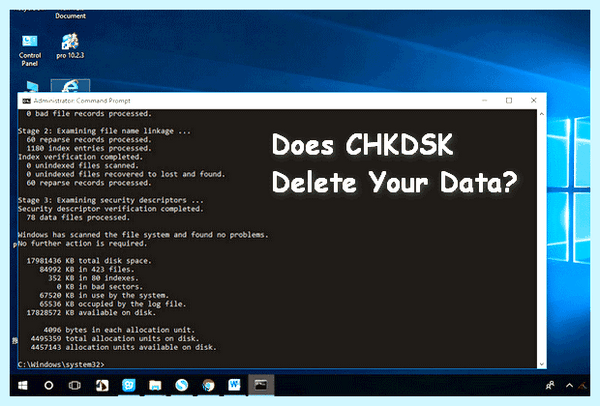

CHKDSK Deletes Your Data? Now Recover Them In Two Ways

Does CHKDSK utility delete your important data? Here are ways to help your recover CHKDSK deleted files in few steps.

How to Fix Windows 10 Fatal Error

In this part, I will introduce 8 ways to help fix the fatal error on a Windows 10 PC. The steps to fix Windows fatal error in other systems are basically the same.

#1. Replace Corrupted System Files

As mentioned earlier, having corrupted system files is a general cause of fatal system error. If you can find a way to replace the corrupted files, you can solve the problem easily. Some people said they had fixed the issue successfully by replacing files including winlogon, msgina.dll, and Userinit.exe.

What you should do:

Find another computer that runs the same version of Windows 10.

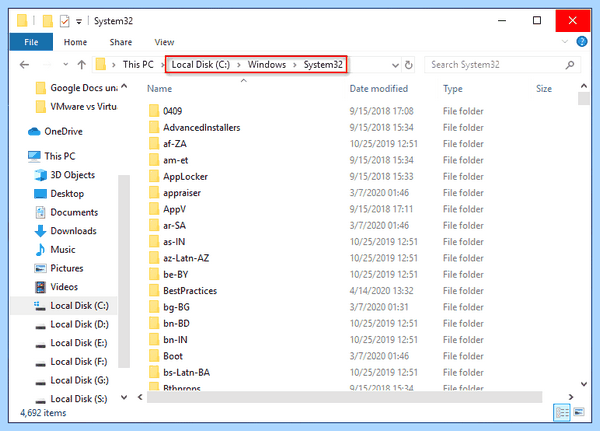

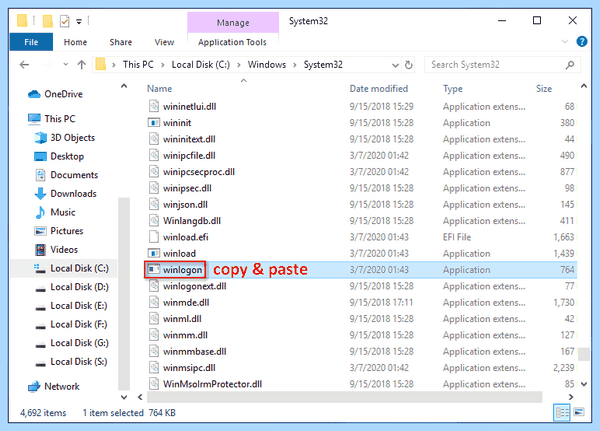

Open File Explorer and go to this path — C:\Windows\System32.
Look for the winlogon, dll, and Userinit.exe files.
Press Ctrl + C to copy certain files.
Open the same directory on your computer.
Press Ctrl + V to paste these files and let them replace the corrupted ones.

How to recover files you’ve deleted mistakenly or lost suddenly?

Step 1: get and install MiniTool Power Data Recovery (don’t save it to the drive that includes the deleted/lost data).

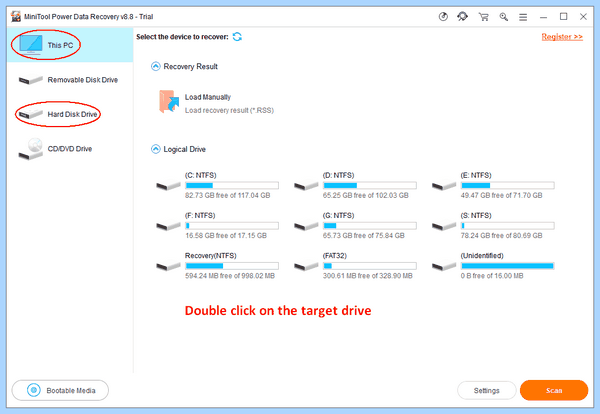

Step 2: run the recovery software and choose an option from the left sidebar. Choose This PC to recover data from existing local drives or choose Hard Disk Drive to recover files from a lost partition.

Step 3: double click on the target disk/partition to start a full scan on it.

Step 4: wait for the scan. Then, browse the found files one by one to pick out what you need.

Step 5: click on the Save button. Then, choose a safe storage path and click OK.

Step 6: wait until all the files have been recovered to the appointed place.

Please get a license to register MiniTool Power Data Recovery; otherwise, you won’t be allowed to recover the deleted/lost files. As for how to recover data from PC won’t boot, I’ll talk later.

#2. Disable Driver Signature Enforcement

Press the power button on your PC.
Press it again right after the Power-On Self-Test (POST) to shut down the computer.
Repeat step 1 and step 2 twice to enter the Windows Recovery Environment (Windows Re).

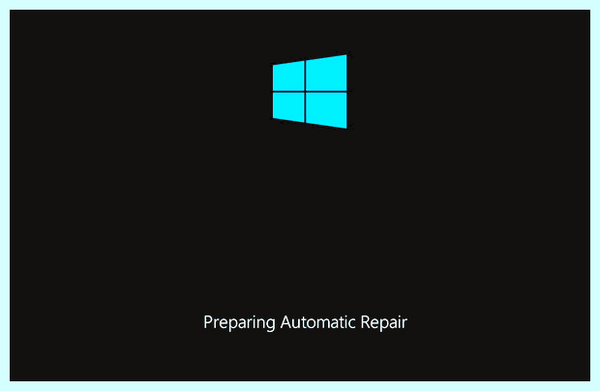

You’ll see the Preparing Automatic Repair window.
Select an account and enter the corresponding password if required. Then, click Continue.
Click on the Advanced options button to continue with the Advanced startup environment.
Select Troubleshoot >Advanced options >Startup Settings one by one.
Press F7 on your keyboard to choose Disable driver signature enforcement.

#3. Turn to SFC Scan

You may as well try the SFC Scan which is designed to repair corrupted files. (How to recover corrupted files efficiently to minimize losses?)

Click on the Start button in the lower left corner.
Navigate to the Windows System folder and expand it.
Right click on Command Prompt and choose More ->Run as administrator.

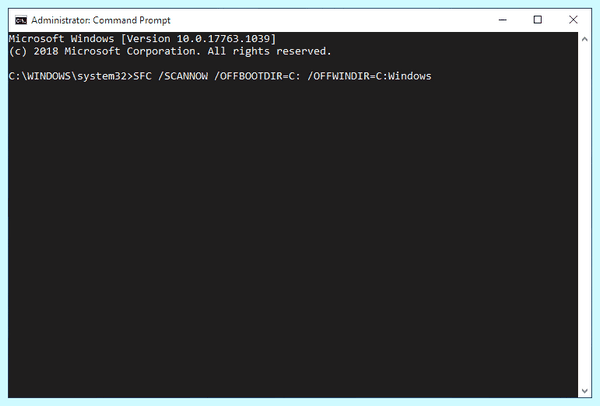

Type SFC /SCANNOW /OFFBOOTDIR=C: /OFFWINDIR=C:Windows.
Press Enter on your keyboard.
Wait until the scan is finished. It will repair the errors for you automatically.

#4. Run CHKDSK Command

Also, you need to run the Command Prompt tool as an administrator.

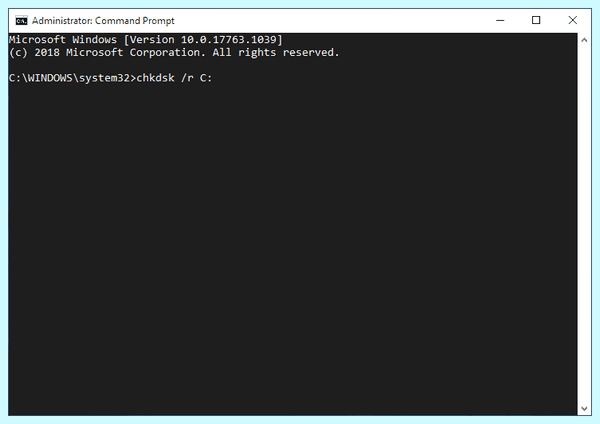

Type chkdsk /r C: into the window and hit Enter.
Wait for the command to finish.

#5. Use DISM Command

Insert your Windows 10 installation media to the computer.
Boot from this installation media properly.
Press Shift + F10 at the same time to open Command Prompt window.

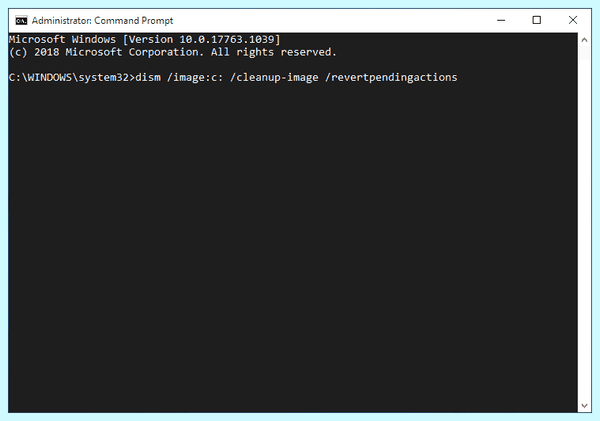

Type or copy & paste this command into it: DISM /image:c: /cleanup-image /revertpendingactions.
Press Enter on the keyboard and wait for the command to finish.
It will help you solve the problem if any errors are found.

You can also repeat step 1 to step 3 mentioned in the previous method to run Command Prompt as an administrator and run the DISM command.

#6. Copy & Paste the Moved Files

Warning: This process is a little bit dangerous since you need to copy files and paste them to the Windows 10 installation directory. However, if you really need to fix the fatal error on Windows 10, it worth a try. I strongly recommend that you backup your drive/files before copying any files by using MiniTool ShadowMaker, in case of any unexpected error.

Boot your Windows 10 computer from Linux media.
Locate the hard drive accurately. Then, access it.
Look for the folder named 000 or several found folders.
Copy all the files inside the folder (press Ctrl + A to select all items and press Ctrl + C to copy them).
Go to open C:\Windows\System32 and press Ctrl + V to paste the files here.

#7. Repair the Registry by Using Backup

Open File Explorer and go to C:\Windows\System32\config.
Select Default, Sam, Security, Software, and System files by holding Ctrl.
Press Ctrl + C to copy them. Then, go to another location to paste them by pressing Ctrl + V. (These steps are not necessary, but they are important for backup.)
Go to C:\Windows\System32\config\RegBack this time.
Press Ctrl + A to select all the items and press Ctrl + C to copy.
Go back to C:\Windows\System32\config and press Ctrl + V to paste.

What if you can’t access your system at all? Of course, you should boot into Safe Mode and finish these steps.

How to recover data when PC can’t boot?

Find another computer. Buy a license for MiniTool Power Data Recovery (make sure it includes Snap-in WinPE Bootable Builder by looking at the comparison).
Get the setup program, install it, and then launch.
Copy & paste your license to register for a full edition.
Click on the Bootable Media button in the lower left corner.
Follow the on-screen instructions to create a bootable USB drive or CD/DVD by using MiniTool Media Builder.
Remove the bootable disk from the current computer and connect it to the PC that won’t boot.
Enter BIOS and change the boot order to boot from this disk.

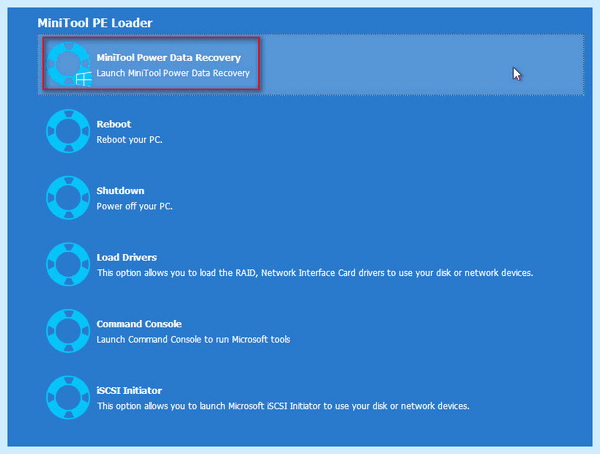

Select the first option in MiniTool PE Loader window.
Choose the target drive to scan -> browse scan result -> save needed data to an external storage device.

#8. Reset Windows 10

Restart your PC for a few times during startup in order to enter Automatic Repair.

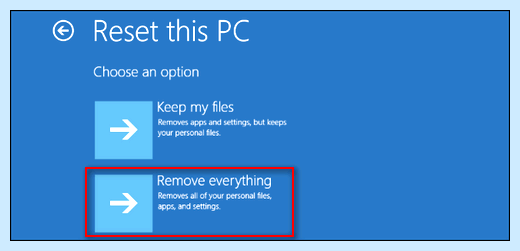

Choose Troubleshoot, Reset this PC, and Remove everything one by one.
Please insert your installation media if required.
Choose Only the drive where Windows is installed and then Just remove my files.
Finally, click on the Reset button.
Follow the instructions and wait for the reset process to accomplish.

People also said they have fixed the fatal error by the following methods:

Rollback drivers to the previous version in Device Manager.
Uninstall all the applications, programs, or drivers installed recently.
Update the system, programs, and drivers to the latest versions.
Check the hardware for errors, including motherboard, CPU, RAM, and so on.

Final Thoughts

Though fatal system error sounds serious and may cause your system to fail to boot, you still don’t need to worry too much. It doesn’t matter you are encountering c000021a or other codes indicating the fatal error; there are always useful methods to help you solve the problem.

In the previous content, I mainly introduce 8 ways to fix Windows fatal error. In addition, 4 other solutions are given as a bonus. What’s more exciting is that it demonstrates the steps to recover data from a Windows 10 PC and from a PC that won’t boot successfully.

Notaker — Fatal System Error

Facebook
Twitter
Linkedin
Reddit

About The Author

Sarah has been working as an editor at MiniTool since she graduated from university. Sarah aims at helping users with their computer problems such as disk errors and data loss. She feels a sense of accomplishment to see that users get their issues fixed relying on her articles. Besides, she likes to make friends and listen to music after work.

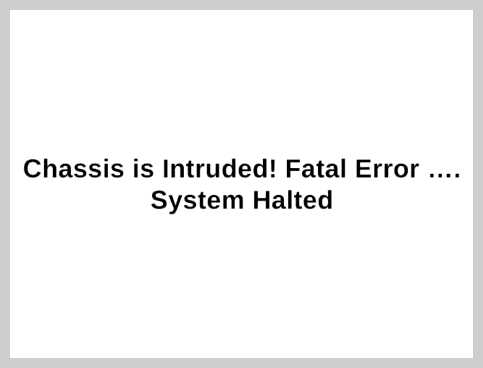

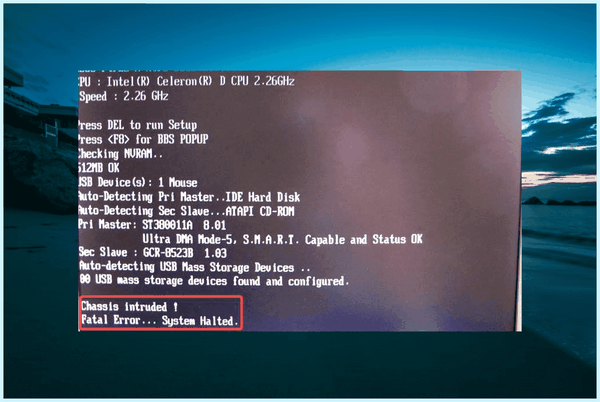

Chassis intruded! Fatal Error… System Halted

При сборке компьютера может временами появляться ошибка «Chassis intruded! Fatal Error… System Halted». Естественно, на просторах сети гуляет много инструкций, где нужно что-то распаивать, поменять датчики либо еще что-то. Но мы начнем с самых обычных способов.

Чем вызвана ошибка Chassis intruded! Fatal Error… System Halted

На неких материнских платах есть способ для отслеживания вскрытия корпуса. Если корпус не закрыт, или крышка прилегает неплотно, то расположенный на корпусе датчик срабатывает и перекрывает систему, что не дозволит загрузить операционную систему, в неких случаях даже БИОС. Но причина может быть не только лишь в датчике, да и в неверном замыкании перемычки на разъеме Chassis Intruded или в случае деформации джампера. Для начала разглядим верный способ подключения датчика отслеживания открытия корпуса.

Подключение датчика открытия корпуса

Ошибка «Chassis intruded! Fatal Error… System Halted» нередко является следствием неверного подключения датчика открытия корпуса. На всякий случай сможете ознакомиться с аннотацией, ведь если для вас требуется таковой датчик для обеспечения безопасности, то следует его верно подключить. Если сделать это ошибочно, то с вышеприведенной ошибкой точно предстоит столкнуться.

Есть датчики, которые имеют три полосы питания. Нередко встречаются на потребительских материнских платах ASUS.

Видите ли, тут три разъема, которые следует верно подсоединить к материнской плате:

NC – Normal Connected – нормально замкнут;
NO – Normal Open – нормально разомкнут;
C – Common – общий;

«С» необходимо подключить на +, «NO» на минус. NC не подключаем, замыкать цепь тут ни к чему. Пример на фото ниже.

После для вас будет нужно дважды выполнить перезагрузку. 1-ый раз после сохранения опций BIOS, может показаться ошибка «Chassis intruded! Fatal Error… System Halted». Тогда всего только необходимо надавить кнопку Reset, после этого система запустится нормально.

В случае серверного оборудования приметно проще. К примеру, в платформах Supermicro с подключением нет никаких заморочек. Там только один двухконтактный провод, который достаточно просто соединить с материнкой. Довольно вставить в разъем Chassis Intruded, соблюдая полярность. Размещение разъема будет обозначено в аннотации. Пример на фото.

Если вы верно подключили датчик открытия корпуса у сервера, то заморочек не возникнет. Исключением может стать повреждение коннекторов либо какой-нибудь брак. Но встречается схожее очень изредка.

Если ошибка появилась вследствие неправильной установки и нет доступа к BIOS

Если не сможете получить доступ в BIOS, то необходимо замкнуть CLRTC, подождать 10-15 секунд и убрать перемычку. В случае, если разъем двухконтактный, то довольно надеть джампер на него.

Есть трехконтактные разъемы. На таких требуется замыкать 2 и 3 штырек, перемычка на их обычно установлена вначале и замыкает 1 и 2 штырьки.

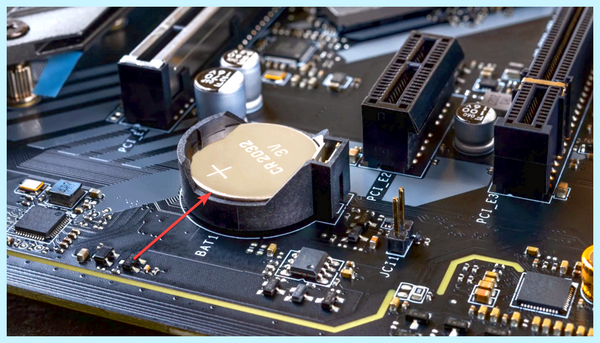

Если не посодействовало, снимите батарейку и поставьте назад. Нередко это более удачный метод сброса опций BIOS.

После сброса не забудьте включить определение датчика вскрытия корпуса, потому что сброс БИОС нередко отключает эту функцию. Может называться так:

Case Open Warning;
Chassis Intrusion Detect;
Intruder Detection.

После повторного включения функции перезагружаем устройство. Если ошибка появилась опять, то жмем кнопку Reset, ждем пуска. Устройство должно работать нормально.

Исправляем ошибку, если датчик не подключен

Причина возможно окажется в перемычках. В особенности нередко глюк встречается на материнских платах от ASUS. Невзирая на то, что джампер надет, материнка все-равно считает, что цепь не замкнута.

1-ое, что можно испытать сделать, отыскать в BIOS опции, которые называться могут так:

Case Open Warning;
Chassis Intrusion Detect;
Intruder Detection.

Всякую из их деактивировать (практически, перевести в Disable). Таким макаром вы стопроцентно отключите проверку открытия крышки. Ошибка также уйдет.

Данную аннотацию делать исключительно в случае, если не сможете попасть в BIOS, при всем этом, датчик открытия корпуса не подключен:

Обесточиваем устройство, вскрываем его, снимаем батарейку, чтоб на сто процентов обесточить материнскую плату.
Находим два джампера: Отвечающий за Chassis intruded (может быть подписан как CHASSIS) и CLRTC. Батарейку возвращаем на место.
Следует снять перемычку с CLRTC и переставить так, чтоб замыкался 2 и 3 штырек, подождать секунд 10 и возвратить на место. Положение джампера CHASSIS поменять не стоит.
Сейчас необходимо закрыть корпус, включить устройство и зайти в БИОС, чтоб возвратить ваши опции (снятие батарейки выполнило полный сброс) Там же можно включить функцию Chassis Intrusion Detect назад, если она нужна, но при выключенном датчике в ней необходимости нет.
Сохраняете опции, выходите из BIOS и ожидаете загрузки системы. «Chassis intruded! Fatal Error… System Halted» вылезет опять, но ничего ужасного.
Нажимаете кнопку Reset, после перезагрузки ошибка должна пропасть.
Готово.

Если не помогло

Тогда придется опять залезть в корпус, снять батарейку и снять джампер с перемычки, отвечающей за Chassis Intruded. Возвратить батарейку на место, перемычку тоже, после этого закрыть корпус и запустить устройство. Готово. В последнем случае можно поменять перемычки на новые. Время от времени это помогает.

Если не посодействовало даже это, следовать советам по перепайке, и иным непонятным вещам не следует. Лучше тогда вообщем выключить функцию определения открытия корпуса, или обратиться к производителю материнской платы за помощью. Хоть какое механическое вмешательство способно попортить компонент.

Надеюсь, данная аннотация посодействовала решить делему и поправить раздражающую ошибку. Если же нет, то стоит давить на службу саппорта производителя. Хоть какой сбой — последствие их недоработок.

Chassis Intruded Fatal Error System Halted: How to Fix

Everything you need to get rid of this frustrating error message

Troubleshooting Expert

Passionate about all elements related to Windows and combined with his innate curiosity, Ivan has delved deep into understanding this operating system, with a specialization in drivers and. read more

Updated on January 28, 2023
Reviewed by Alex Serban
Windows Server & Networking Expert

After moving away from the corporate work-style, Alex has found rewards in a lifestyle of constant analysis, team coordination and pestering his colleagues. Holding an MCSA Windows Server. read more

If you are getting the chassis intruded fatal error, it means the cabinet where your motherboard is located is open.
You can fix this issue quickly by fitting the chassis into place.
Another effective solution is to disable the chassis intrusion alert.

X INSTALL BY CLICKING THE DOWNLOAD FILE

To fix various PC problems, we recommend DriverFix:
This software will keep your drivers up and running, thus keeping you safe from common computer errors and hardware failure. Check all your drivers now in 3 easy steps:

Download DriverFix (verified download file).

Click Start Scan to find all problematic drivers.

Click Update Drivers to get new versions and avoid system malfunctionings.

DriverFix has been downloaded by 0 readers this month.

The Chassis intruded Fatal Error… System Halted error message is usually a hardware issue. The message shows when the chassis or the cabinet in which the motherboard is fitted gets open somehow.

In essence, the error message can be seen as a security mechanism provided by some OEMs – usually common on ASUS motherboards. With this known, we will show you how to get rid of the error message in the ensuing sections of this guide.

What does chassis intrusion mean?

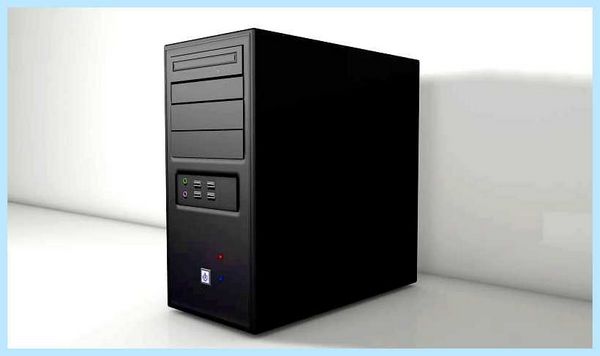

Chassis intrusion means that the chassis or the cabinet in which your motherboard is fitted is opened. This error seeks to warn the user if the cabinet is breached.

The mechanism uses a connector on the motherboard to detect if the chassis is removed/ replaced.

That said, the error message can also appear if there are issues with the BIOS or CMOS. However, notwithstanding how intricate the error might seem, it can be resolved easily and quickly with minimum effort.

What is chassis intruded fatal error, and how to fix it?

1. Put the cabinet back in place

This often is the easiest and the most logical solution to the issue. However, before physically putting it in the cabinet, you must put the jumper back on the pin-marked chassis signal on the motherboard.

In some cases, there might be a switch mechanism that gets engaged once the cabinet is properly locked in its slot.

2. Clear CMOS

Turn off the PC and remove all peripheral devices connected to it. Also, disconnect the AC power cord as well for additional safety.

Open the PC cabinet cover.

Locate the battery fitted on the motherboard. Refer to the company manual if needed.

Remove the battery. Remember the + and – side to prevent nasty surprises later on.

Wait for at least 5 minutes.

Insert the battery again, but make sure that it’s inserted properly.

Place the cabinet cover securely.

Connect to the AC outlet and start your PC.

The above represents the battery method to clear CMOS, and the same can also be achieved using the jumper method.

However, it can be a bit more tricky and is best done under the supervision of a hardware specialist if you aren’t too comfortable with the motherboard and its components.

Read more about this topic

What is Error Code 0x80240004 & How to Fix it

What is Error 0x80070006 And How to Fix It in 7 Ways

Error Code 0x80070520: How to Fix It in 7 Steps

Razer Synapse Not Detecting Razer Devices [Fixed]

3. Disable Chassis intrusion

Restart your PC.

Press Del or F2 repeatedly under the BIOS screen when the PC has just started to boot. Refer to the company manual for the exact key applicable for your PC to enter into BIOS.

Locate the Chassis intrusion feature and set it to Disabled.

The above steps should be all needed to take care of the Chassis intruded! Fatal Error… System Halted error message. Some of the steps mentioned above require hardware skills, so you might want to contact a professional.

If you are facing a fatal system error on Windows 10, check our detailed guide to fix it quickly.

Feel free to let us know the solution that helped you fix this issue in the comments below.

Похожие статьи

Steam client fatal error

Содержание Steam client fatal error FATAL ERROR: Failed to connect with local Steam Client process — что делать? Что делать для решения ошибки FATAL…

Steam fatal error что делать

Содержание Steam fatal error что делать Как исправить ошибку [failed to initialize Steam] Способ 1. Перезапустите Steam *Что делать если ошибка fatal…

System error windows

Содержание System error windows «Ошибка 5. Отказано в доступе» – причины возникновения и способы устранения Что собой представляет системная ошибка 5…
