The final feature that makes iPXE so impressive, is that it also has a very advanced scripting language and text-based menu system. These features enable you to make dynamic boot environments without the need to know a server-side scripting language like PHP, Perl or Python.

What is network boot in BIOS?

Network booting, or booting from LAN as it is also called, is a process which allows a computer to start up and load an operating system or other program directly from the network without any locally attached storage device, like a floppy, CDROM, USB stick or hard drive.

What does Network Boot do?

Network booting, shortened netboot, is the process of booting a computer from a network rather than a local drive. … Network booting can be used to centralize management of disk storage, which supporters claim can result in reduced capital and maintenance costs.

What is UEFI network boot?

Preboot eXecution Environment (PXE) is a protocol that boots computers without using a hard drive or an operating system. … The difference between Unified Extensible Firmware Interface (UEFI) boot and legacy boot is the process that the firmware uses to find the boot target.

What is the purpose for the PXE boot option in BIOS settings?

This selection allows booting from the onboard LAN. To enable the network as a boot device: Press F2 during boot to enter BIOS Setup.

What is PXE boot used for?

Preboot Execution Environment(PXE) is a client-server interface that allows computers in a network to be booted from the server before deploying the obtained PC image in local and remote offices, for PXE enabled clients.

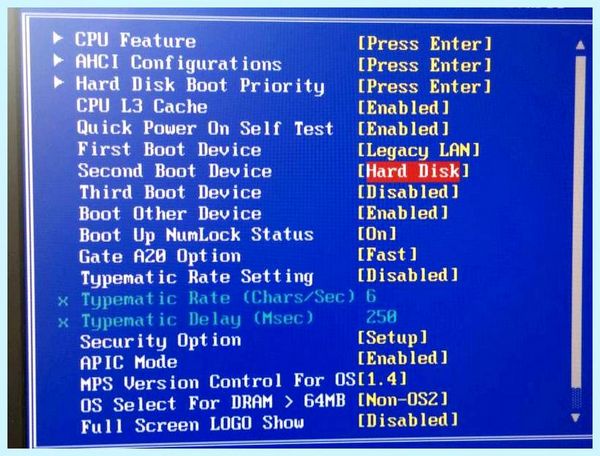

How do I boot from BIOS on network?

To enable the Network as a boot device:

Press F2 during boot to enter BIOS setup.
Go to Advanced Settings > Boot Menu.
Select Boot Configuration and uncheck Boot Network Devices Last.
From the Boot Configuration menu, go to Network Boot and enable UEFI PCE & iSCSI.
Select either Ethernet1 Boot or Ethernet2 Boot.

How do I boot from a network?

Install an Operating System Using PXE Network Boot

Press the F2 key to access the BIOS Setup Utility. The BIOS Setup Utility appears.
Select Advanced in the top menu bar. …
Select Network Stack. …
If necessary, set the appropriate PXE Support setting (IPv4 or IPv6) to Enabled.
To save the changes and exit the BIOS Setup Utility, press the F10 key.

Is my system UEFI or BIOS?

Check if you are using UEFI or BIOS on Windows

On Windows, “System Information” in Start panel and under BIOS Mode, you can find the boot mode. If it says Legacy, your system has BIOS. If it says UEFI, well it’s UEFI.

Which is better UEFI or legacy?

In general, install Windows using the newer UEFI mode, as it includes more security features than the legacy BIOS mode. If you’re booting from a network that only supports BIOS, you’ll need to boot to legacy BIOS mode.

Is Windows 10 UEFI or legacy?

To Check if Windows 10 is using UEFI or Legacy BIOS using BCDEDIT command. 1 Open an elevated command prompt or a command prompt at boot. 3 Look under the Windows Boot Loader section for your Windows 10, and look to see if the path is Windowssystem32winload.exe (legacy BIOS) or Windowssystem32winload. efi (UEFI).

How do I stop BIOS from booting?

Enabling or disabling network boot for a NIC

From the System Utilities screen, select System Configuration > BIOS/Platform Configuration (RBSU) > Network Options > Network Boot Options and press Enter.
Select a NIC and press Enter.
Select a setting and press Enter. …
Press F10.

What is the PXE boot process?

The PXE environment in its simplest form is the process of having your device boot from its network card. For the device to boot into the PXE environment it needs to receive the relevant instructions.

How do I setup a network boot server?

Step 1: Install and configure DNSMASQ Server. …
Step 2: Install SYSLINUX Bootloaders. …
Step 3: Install TFTP-Server and Populate it with SYSLINUX Bootloaders. …
Step 4: Setup PXE Server Configuration File. …
Step 5: Add CentOS 7 Boot Images to PXE Server. …
Step 6: Create CentOS 7 Local Mirror Installation Source.

How do I fix no boot device?

Method 2. Check boot order

Restart your computer and press a specific key (Del, F2, F10…) to enter BIOS setup.
Access the “Boot” tab using the right arrow keys on your keyboard. And move your system hard drive to the top of the boot order list.
Save changes, exit BIOS and restart your computer.

What is PXE in BIOS?

PXE – Pre-Boot Execution Environment

Short for Pre-Boot Execution Environment. Pronounced pixie, PXE is one of the components of Intel’s WfM specification. It allows a workstation to boot from a server on a network prior to booting the operating system on the local hard drive.

Is PXE boot secure?

PXE has no mechanism for encryption or authentication, is susceptible to man-in-the-middle attacks, does not scale outside of local networks, and has reliability issues associated with TFTP time-outs and UDP packet loss. The UEFI Specification introduced HTTP(S) Boot in in version 2.5.

The fundamentals of network booting

On Intel architecture computers this is мейд possible with the PXE standard. PXE extends the features of the BIOS so that it can run software directly from the network. PXE support is now so common that you can expect it to be present in any reasonably modern computer that comes with an Ethernet jack (commonly known as RJ45).

This fact alone makes it possible to boot an Intel-based computer from the network without having to burn an EEPROM on your network card, like you had to do in the past.

Core technologies

DHCP protocol, used to initialize network configuration for a client
TFTP protocol, used to download a network boot program (NBP)
HTTP protocol, used to download data from a web server
PXE — a way to boot Intel computers using DHCP and TFTP
UNDI — an API used by the PXE environment to generalize access to networking hardware

Other relevant protocols

All of these network protocols deal with how to access storage over they network in different ways.

iSCSI — for block devices
AoE — for block devices (non-routable, local network only)
NBD — for block devices
NFS — for files (mostly used on Unix)
SMB/CIFS — for files (mostly used on Windows)

The BIOS boot process

When your computer powers on and starts running your operating system, it goes through a series of operations before it actually starts your operating system. Your operating system is a very sophisticated boot program that takes total control over your computer. But a boot program can also be a fairly simple program, like a memory diagnostics program, a hardware stability checker, or even a simple game like Pong or Tetris.

Power On When you put power on your computer and press the On button on the case. Initialize hardware The BIOS performs an inventory of all the components in the computer, such as the CPU, memory chips, extension cards, storage controllers, etc. Run self-tests All of the components discovered goes through a self-test procedure, to ensure they are operating properly. If any of the components fail, and that component is required for basic operation, your computer will usually make a series of beeps and stop functioning. When all problems have been fixed the BIOS will move on to the next step in the process, which is to discover additional option ROMs. Computer stopped If your computer ends up in this state, it will either hang forever, or it will turn itself off. This depends on how it entered this state, and how your BIOS is configured to react when it reaches this state.

Discover built-in devices and option ROMs During this activity, your BIOS will discover all of the extensions available. BIOS extensions are usually included in the firmware of your BIOS or burned into an EEPROM or flash chip on one of your add-on cards. During booting you can normally notice this as your IDE, SATA, SCSI or other controllers finding the devices that are attached to them. For network cards, this is usually when you see the prompt that lets you specify what kind of boot protocol it should support (like PXE or RPL). Option ROMs should usually not do anything fancy at this point, except initialize hardware, run self-tests and set up boot service (BBS) entry points. Once all extensions have been allowed to run and add their boot service entry points, control goes back to the BIOS. At this point all the add-on cards and internal services of the BIOS have been initialized and are ready to do work.

All of the boot service entry points are ordered according to the configuration specified in the BIOS. It is quite common that the user is given a choice of which boot service to try first by pressing a hotkey. F12 is a common key to start a boot service offered by a network card, but this varies among manufacturers. Once the first boot service has been selected, either manually or automatically, control moves to the next step.

Start first boot service in BIOS boot services list During this stage, the program indicated by the boot service entry point is started. At this point, control passes to the boot service program, which starts its discovery process for a boot program. Boot service performs discovery for boot program Different boot services go about looking for the boot program in different ways. A floppy controller will read the first sector of the floppy and get ready to start that piece of code. A hard-drive (HDD) controller will usually read the master boot record (MBR) of the first attached HDD and designate that as the boot program. A network card using the PXE standard will perform a DHCP request to find out its IP address and location of boot program. If a location is advertised, a TFTP request is performed to fetch the boot program, commonly referred to as a network boot program (NBP).

If the boot service was unable to find a valid boot program, the boot service will exit and control returns back to the BIOS, which will try the next boot service. If a boot program was successfully found, control will be handed over to it. Remove first boot service or put at bottom of list The BIOS needs to cycle to the next boot service in its list. Whether the BIOS discards the current boot service or adds it back at the end of the list varies between BIOS vendors. Both methods have pros and cons.

The next step is to figure out if there are any more boot services to try out. More boot services available? If there are more boot services available, the next one in line will be started. If there are no more boot services the computer will halt and perform its halt operation.

Start boot program At this point the boot program is in full control of the computer, and it will start doing whatever it is supposed to do. If the boot program detects a problem or wishes to, it can return back to the BIOS. This is not a very common thing to do for a boot program, as a lot of BIOSes have buggy implementations for getting control back. The more common method is just to display a message and hang, or reboot instantly.

Since the boot program has full control over the computer it can make use of all the other devices the BIOS has detected to perform whatever action it needs to. Boot program running The final part a boot program normally does, is to хэнд over control to an operating system kernel. A boot program that performs this kind of action is usually called a boot loader. Common boot loaders for Linux systems are grub and syslinux.

Before the boot loader does this, it will usually also fetch additional data from a storage device, e.g. drivers and configuration files. Any program code required to operate the hardware must be in main memory at this point, or you will be unable to access the hardware. This requirement is usually implemented using ramdisks, so that the kernel can be kept modular and flexible. In Linux they are called initial ramdisks (initrds), in Solaris they go by the name boot archives, and in recent Windows versions they are called wim files. The operating system kernel will then perform a complete discovery of the hardware attached to the system (again) and start doing whatever it is programmed to do.

At this point, because another piece of code (the kernel) is in direct control of the hardware, it would be very unwise to switch control back to the BIOS, as hardware state has been modified under its feet.

How iPXE extends the network boot process

iPXE is a sophisticated boot program that is capable of extending the traditional PXE network boot process in several ways. It can be flashed as an add-on card’s option ROM, or it can be loaded as a network boot program (NBP) from an existing PXE option ROM via TFTP (this is called chainloading). It is also possible to include it as an option ROM inside your BIOS or load it from any local storage media, like floppy, USB, CD or HDD.

Как установить Windows на ПК по сети

One of the most interesting features iPXE enables, is to boot a computer without an iSCSI host bus adapter from an iSCSI volume. This is possible, because iPXE implements a full-featured software-based iSCSI initiator. It even supports CHAP authentication! For operating systems that support it, you can also use AoE (ATA Over Ethernet) in addition to iSCSI.

The final feature that makes iPXE so impressive, is that it also has a very advanced scripting language and text-based menu system. These features enable you to make dynamic boot environments without the need to know a server-side scripting language like PHP, Perl or Python.

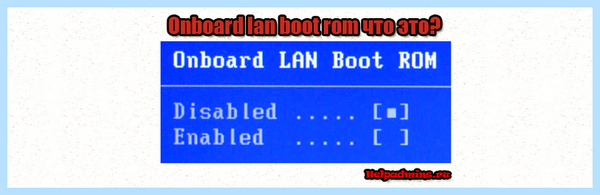

Что такое Onboard lan boot rom?

В данной статье мы разглядим такую достаточно всераспространенную опцию BIOS, как onboard lan boot rom. Встречается она на многих материнских платах, а вот зачем она необходимо знает далековато не каждый.

Данная функция зависимо от версии bios может иметь немного модифицированные наименования:

Boot ROM Function;
Boot From LAN First;
Boot to Network;
Intel 82573E Boot ROM;
LAN Boot ROM;
LAN Option ROM;
MAC LAN Boot ROM;
OnBoard LAN Boot ROM;
Onboard LAN Option ROM;
OnBoard Marvell LAN Boot ROM;
OnBoard NV LAN Boot ROM;
PXE Boot to LAN;
Realtek LAN ROM Initial.

Для чего нужен Onboard lan boot rom?

Как многие должны знать, компьютер сходу после нажатия кнопки включения начинает находить загрузочное устройство, чтоб приступить к загрузке системы. Этим устройством в большинстве случаев бывают жесткий диск, флешка либо диск.

Как настроить компьютер для работы с Windows 10 без жесткого диска

Функция onboard lan boot rom в биосе

Но благодаря функции onboard lan boot rom загрузка компьютера вероятна и без их. А выполняться она будет по сети со специального централизованного сервера. Так нередко делается в больших компаниях, где все данные, в том числе и операционная система, хранятся на сервере, и рабочие станции грузятся конкретно с него.

Это значительно упрощает процесс администрирования таковой сети, где не надо ходить к каждому компу и переставлять на нем операционную систему в случае ее выхода из строя.

Благодаря onboard lan boot rom это можно сделать удаленно.

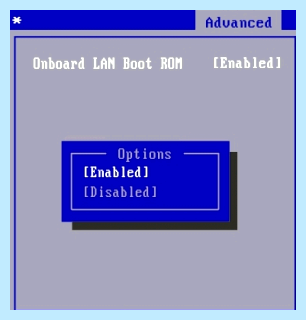

Для того, чтоб загрузиться из сети onboard lan boot rom должен стоять в положении Enabled (активирован), а в перечне порядка загрузки устройств (boot) network boot должен стоять на первом месте.

Если же вы не планируете воспользоваться загрузкой компьютера из сети, то onboard lan boot rom лучше поставить в положение “Disabled” (выключена).

Этим вы ускорите загрузку компьютера, ведь ему не придутся растрачивать время на поиск сервера загрузки в сети.
