Guide: What are Front Panel Connectors on Motherboard?
Front panel connectors are needed for all PC users as they can be considered the backbone of the PC case. I know it feels a little stupid that instead of the motherboard, I am saying that panel connectors are the backbone of PCs. Well, if you do not have front panel connectors, how are you supposed to power on your PC, or how will you get to know what is happening inside your motherboard?
Front panel connectors or front panel headers are a block of connectors that control the power on, reset, beep code speaker, and the LED light indicators on the PC. All motherboards contain front panel connectors that connect the motherboard with the pc casing or pc chassis. The cables that connect with the motherboard come from the casings of the PC.
Let me tell you something interesting. These panels consist of small pins that work as specific equipment. All pins connect with their specified switches. The front panel connector is small technical equipment that controls the whole CPU. For example, the two pins of power and reset connected to the motherboard help the user start the computer and pc.
One more thing that the front panel connector does is that it is connected with an LED light system that indicates the CPU’s performance and whether the PC is on or is in sleeping mode. The front panel connectors can jump-start the motherboard. If the power-on button is missing on your PC casing, you can jump-start the motherboard using a precision screwdriver. Touch both power-on switches together, and your motherboard will start working.
What are System Panel Connectors?
System panel connectors are the exact copy of a front panel connector. The only difference between this technical equipment is their names. Otherwise, they perform the same functions. I was nervous when I began learning about technological assets, but after some time, I realized that these two are similar things with different names.
Functions of Front Panel Connectors
There are five primary functions that a front panel connector performs.
- Helps in switching on the CPU
- Indicates the performance of the CPU
- Beeps to tell the problems of the cpu
- Indicates when the CPU is in reset mode
- Indicates the performance of the hard drive by a continuous flash
What is Front Panel Connectors Diagram?
These computer panel connectors were science in starting, but now they have become relatively easy to install. The user only follows the manual and can connect their motherboard front panels, but some still do not understand it, so let me explain it to you.
This front panel connector comprises PLED +- switches on the top left. This indicates whether the PC is powered on or in sleep mode. The three switches on the top right are the pins of internal motherboard speakers that tell the modes and performance of the CPU by beeping. The IDE_LED +- switches on the bottom left indicate the performance of your hardware drive.
Whereas the PWRSW pins present in the bottom middle of the front panel connectors are the switches that control the button that is used to turn on and off your PC. And in the end, the two switches at the bottom right of the panel are the reset switch.
Types of Front Panel Pins on Motherboard
There are five essential functions and the pins on the motherboard concerning them. Following is the description of the front panel pins on the motherboard.
- Power Switch Pins: PWRSW or PW are two pins that connect the Power button cable with the power switch that controls the PC’s power on and off function.
- Reset Switch Pins: These two pins connect the reset switch with the reset cable on the chassis of your PC.
- Power LED Pins: Also known as PLED pins, these three pins connect the LED light on the PC case with the motherboard. These LED lights indicate whether the PC is on, off, or in sleep mode.
- Hard Disk LED Pins: he two pins connect with LED lights that indicate the activity of the hard disk by flashing continuously.
- Speaker Pins: These are the 4 pins connected with internal motherboard speakers or beep code speakers on the PC casing. It helps in identifying and troubleshooting any hardware issues faced by your PC.
What are Front Panel Cables?
Once I had a great experience while working with my father. I got some serious issues with my PC as it was not working as per my expectation, so I asked him to take a look at it. And guess what? He decided to look at the front panel connector and motherboard. My new CPU was not working correctly because some cables on the front panel were not in place. At that moment, I realized that these cables are worth using if placed correctly. Now let me tell you a little info about them.
The system panel cables are not keyed so that they can be placed in any direction. In modern-day motherboards, front panel connectors + and – signs are labeled, making it easy for users to connect them. The labeled motherboard shows the directions of the cables.
Front Panel Connectors Adapters
The front panel connector adapters are the devices that are connected to all cables and pins on the PC. It allows the user to plug the cables with the pins on the panel connectors present on the motherboard. These adapters have different capabilities and ranges concerning pins and cables.
Sometimes, when some front panels miss any specific pin, the adaptor would be needed as per demand. These USB adaptors are easy to use. The King win power USB adapter is a 3.0 type adapter that supports all SATA types of drives. They can easily connect with WIN/2000/VISTA/7 MAC etc.
What are Motherboard LED Connectors?
The motherboard LED connector is the PLED light on the PC casing. Two PLED connectors are labeled PLED 1 and PLED 2, indicating the computer’s mode, whether the PC is on, off, or in sleep mode. These connectors, while connected, should be placed in their respective directions; otherwise, the LED lights will not work.
ASUS Motherboard Front Panel Connectors
ASUS motherboards are efficient motherboards that are superb in all performance, either in professional fields or in the gaming field. All wanted them. So, their front panel connectors also gain the attention of many people. Mostly ASUS motherboards are fun to install.
The outstanding installation of front panel connectors in this motherboard is an exciting process. I have not installed any front header connectors in this motherboard alone but watching others do it was an exciting experience.
Let me specifically tell you about the front panel connectors of the ASUS B550 series. In this series, all motherboards are supported by AMD Ryzen 5000 and 3000 series. The front header connectors of the B550 series mostly contain USB 3.2 Gen 2 support and are pre-mounted with an I/O shield. Some B550 motherboards support USB 2.0 front panel headers. These front panel headers mainly support USB C type.
Video Demonstration Install the Front Panel Cables
Front Panel Connectors Gigabyte Motherboards
Gigabyte motherboards have a unique feature of a G connector. It can connect all the tiny front panel connectors at once. It will be easy and convenient for every PC builder because it will save you time, and you will not be fed up with connecting many wires.
Following are some motherboards that contain USB 3.2 front panel connectors:
- B550-E Gaming
- B550-I Gaming
- ASUS Optimum II
- B550M Plus
B550-E Gaming Motherboard
The ASUS B550-E Gaming motherboard has 1 USB 3.2 Gen 2 with 2 front panel connectors. The front panel audio header is attached with a PC casing and consists of 4 pins. The system power header supports several functions, including 2-pins PWR-LED, 2-pin HDD-LED, 2-pin PWR button, and 2-pin Reset button.
Interesting Fact:
Let me tell you something if you find any colored cable in your front panel, they are known as power cables that connect with the + terminal, whereas the black or white cable is known as the round cable that connects with the – terminal.
Let’s take the example of PLED pins and their cables. The 1 st pin of PLED is labeled as PLED+, indicating that a colored or power cable will connect with it. While the 2 nd pin that is labeled with PLED- indicates that the ground cable will relate to it.
The computer front panel connectors are essential to computer hardware as they connect the basic CPU hardware with the motherboard. They not only control the performance of the PC by controlling the motherboard but also keep a complete check of the hardware performance. It indicates the modes and problems of the motherboard and hard disks, and if not connected correctly, it can give a lousy performance to the whole motherboard.
Conclusion
Previous Article 5 Best DDR5 Motherboard – Intel & AMD Compatible for Gaming
Next Article 6 Best Graphics Card for Ryzen 7 3700x [2023 Review]
My name is Stanley and a dedicated Sim Racing Games Enthusiast. I had started in the Radical race about 3 years ago and am currently competing in the MX5 Cup with the BRSCC. I build this blog “Beta Sim Racing” to help gamers and simulation game runners to get into the simulator races faster. I am participant in the Amazon Services LLC Associates Program and other affiliate advertising program designed to earn little fees. Buy and Support Us
How to Connect Front Panel Connectors to the Motherboard?
Your system will not start if you connect the PC case’s front panel cables to the wrong headers on your motherboard. The connectors that come from the PC case are rather small, and connecting it to one of the pins on the motherboard can be daunting, especially if you are a beginner.
Therefore, we have brought you this article so you can easily connect the front panel connectors to the motherboard, even if you are doing it for the first time.
Table of Contents
Prerequisites
Before we start, there are a few things to keep in mind before you connect the wires to the front panel.
- Ground yourself
- If you cannot insert the cables, do not force them in. As the pins are very thin and can be bent easily.
- Do not turn on your computer unless you are absolutely sure that all the cables are placed correctly.
- Always refer to your motherboard and CPU case user manual if you are unsure about anything.
How to Connect Front Panel Connectors to the Motherboard?
Here is a step-by-step guide on how to connect the front panel connectors to the motherboard.

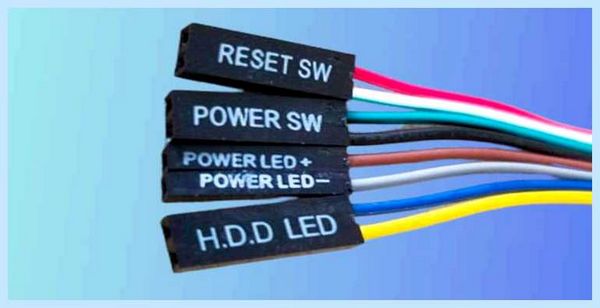

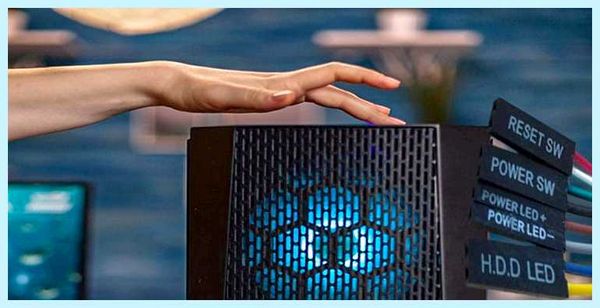

Find Required Cables From Your CPU Case
Track the cables that come from the front panel of your CPU case. If you have a heavier CPU case, there will be more cables than this. Here is the list of all front panel cables and how to find them.
- Power button cable: says POWER SW at the end of the cable.
- Reset button cable: says RESET SW at the end of the cable.
- Power Led lights indicator cable: this will have a + and – sign at the end of the cable. Example: power led is POWER LED+ and POWER LED- or it can be POWER LED
- Hard disk led indicator: this wire says H.D.D. LED+ and H.D.D. LED- or H.D.D. LED at the end of the cable.
Search Your Motherboard for Front Panel Headers
Search for writings like F_PANEL, JFP1, or FP1 in your motherboard. These writings may be different depending on the motherboard you use. Please refer to the user’s manual if you have issues finding the front panel header. If you don’t have a user manual, use the motherboard manufacturer’s official support page to download the manual.
The user manual will have a detailed diagram of the board. Use this to locate the front panel header.
Your motherboard will also have a JFP2 or SPK1. This is used to connect a speaker cable from the CPU case.
Find the Positive and Negative Sides of the LED Cable
Front panel cables such as the power and the reset button have no polarity (positive and negative signs). So, you can insert them in any way. In case of LED connectors, you should insert the positive end of the front panel cable in the positive pin on the front panel header.
POWER SW and RESET SW will have two slots in the cable you need to insert into the front panel headers. On the other hand, the LED may have one or two slots depending on the CPU case manufacturing company.
If the LED cables say LED+ or LED-, you can easily insert the wires by following the steps explained below. However, if the cables only say POWER LED or H.D.D. LED, you should figure out the positive and negative slots first.

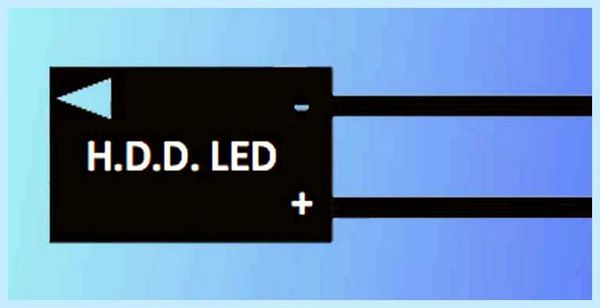

You can see a small triangle on the backside of the LED cables. This indicates the positive end, and the another will be negative.
Connect Your Cables
There will be two sets of pins on your motherboard to connect it to the front panel. One set of pins is called F_PANEL/JFP1/FP1, which holds power, reset, and LED cables. The other one is for the speaker/buzzer, which is called JFP2/SPK1.
Connect F_PANEL/JFP1/FP1

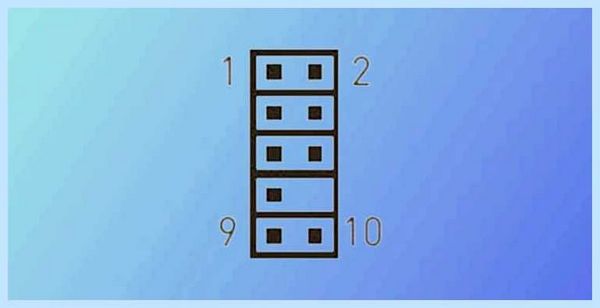

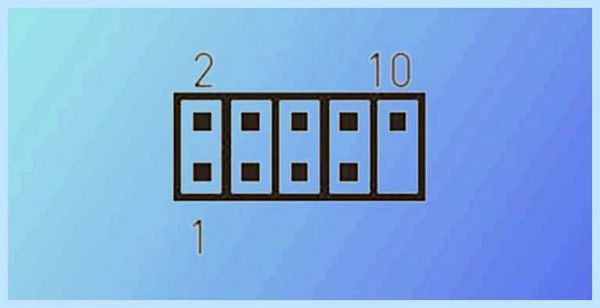

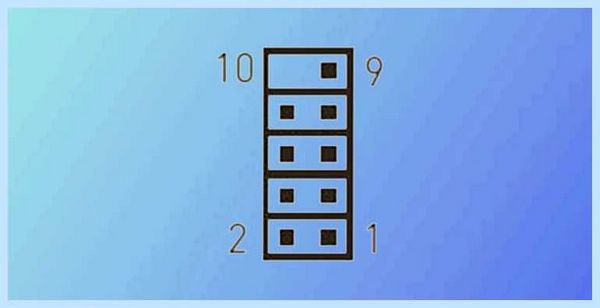

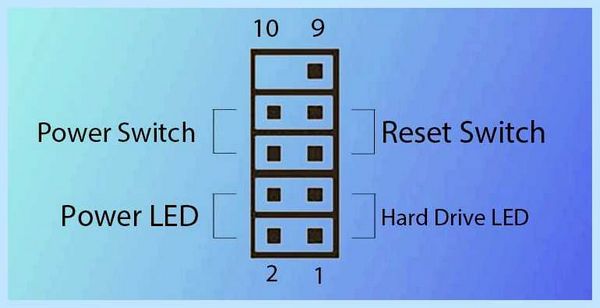

There will be nine pins in your front panel header on your motherboard, as shown below.
Make sure that the pin says “JFP1” or “F_PANEL” Your motherboard will also have these numbers written to identify the pins. The pin on one side is odd-numbered, and the pin on the other side is even-numbered. One pin on the top of the even side will be missing.

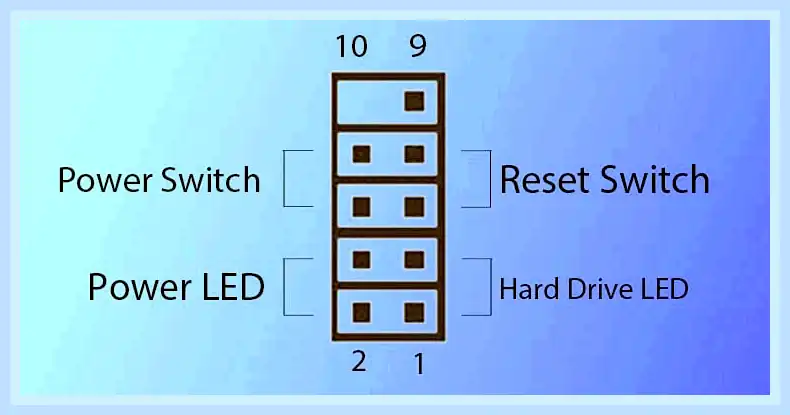

Use the following guide to insert your front panel connectors.
- Pin 1 and 3 are for H.D.D LED+ and H.D.D LED- respectively.
- Pin 2 and 4 are for POWER LED+, and POWER LED- respectively.
- Pin 5 and 7 for RESET SW.
- Pin 6 and 8 for POWER SW.
- Pin 9 will be empty.
The LED light on the front panel will not turn on if you have not matched the positive pins with positive slots and negative pins with negative slots. You can invert and reconnect them if the LED does not turn on.

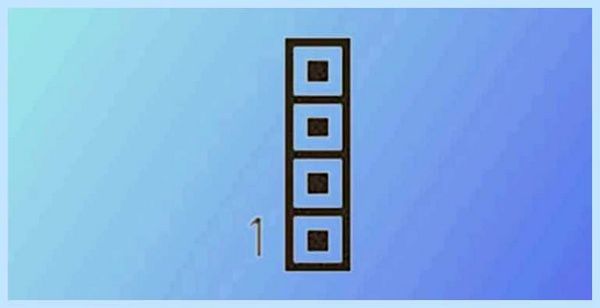

Connect JFP2/SPK1
This cable comes with the motherboard and not the CPU case. It connects to a small speaker, which beeps error codes. JFP2/SPK1 contains one set of four pins, as shown in the image below.
Figure out the positive side of the speaker/buzzer cable. The positive slot goes on the fourth pin.
Related Questions
How to Connect Front Panel USB Connectors?
You can find USB pins on your motherboard. They will have the word USB written under them. Depending on the manufacturer, USB pins may be indicated as JUSB1 or F_USB.
If you cannot locate them, please refer to the user manual for your motherboard. One set of USB connectors will have nine pins on them.
Now, find the cable from your CPU case that says USB at the end. That cable will have a slot for nine pins. To insert, align the pins and cable and gently insert the connector to the header.
How to Connect the USB 3.0 Front Panel Connector?
Unlike USB 2.0 pins, a USB 3.0 front panel header will have 19 pins on them. This can be located from the JUSB2/F_USB3.0 written near them. To find the cables, check for cables with the color blue at the end, with 20 slots.
A small rectangular wall-like structure will surround the pins. On one of the longer sides of the wall, there will be a small gap. To insert the cable, align this gap with the small bulge on the cable.
How to Connect the Front Panel Audio Jack to the Motherboard?
To find the front panel audio connector, search your motherboard for JAUD1/F_AUDIO. This connector will have a slot for ten pins, five on each side, but pin number 8 will be missing.
Search for the HD AUDIO cable from your CPU case. The end of this cable will also have holes/slots for ten pins, five on each side.
The connector from the case will have one pin slot missing. Align the pins and the cable so that they fit perfectly.
How To Connect Front Panel Connectors To The Computer Motherboard in Sinhala
Deep Shrestha works as a computer hardware writer at TechNewsToday with several hardware and programming certifications. Although he has been writing technical content for more than a year, his interest in hardware components started at a very young age ever since he heard about PC building. Pursuing his passion, he has assembled several desktop computers. Besides building desktop PCs, Deep also has hands-on experience fixing software and hardware issues on laptops and desktop computers. Using all this knowledge and skills about computer hardware, he’s on a quest to make content that’s easy to read and understand for everyone. You can contact him at deep@technewstoday.com
Front Panel connectors on the Motherboard
Building your PC sure seems like a fun and easy thing to do, but some parts of the building process may sometimes even leave experts scratching their heads out of confusion. One of the essential parts of building your PC is to connect your case’s front panel connectors correctly and in the right way to your Motherboard, so your case switches and LED lights can start working.
How To Connect Front Panel Connectors To The Motherboard
In this article, we’ll be going over in-depth what front panel connectors are and their importance.
What are Front Panel Connectors?
Front Panel Connectors, also known as Front Panel Header or F-Panel, are a group of connectors on a motherboard that works by controlling the Power on, power reset, beep code speaker, and LED light indicators on your PC case.
All motherboards come with a front panel connection point which allows the case to be connected to the Motherboard and gives us buttons for functions like Power On/off/Reset or LED lights on your case. The cable originates from the case itself and plugs into the Motherboard to utilize these features.
The most basic way for computers to interact with one another is through front panel connectors. They let you access hardware settings and control panels without having to open your computer casing, which might invalidate your warranty if performed incorrectly.
The front panel connections are easily installed on the Motherboard. Still, since every case and Motherboard are slightly different, it may take you some time to find out which specific headers on the Motherboard you need to hook the front panel connections to.
By having connector choices on the inside of the case rather than hidden from view behind your Motherboard, choosing a case with a front panel connector can help you improve your system’s design and installation. The primary function of these connections is to allow easy access to internal computer components without opening the PC chassis.
Front Panel Connectors are made up of tiny pins that each serve a specialized electrical purpose. For example, the Power Switch has two unique pins to attach the case’s connection. Similarly, the reset switch has two separate pins.
What do front panel connectors look like?
To see your front Panel Headers, remove the plastic or metal casing concealing them. This will expose a set of pins to allow you to attach various hardware to your Motherboard. There will be numerous connectors in most circumstances, but not all of them will be as essential as others.
There is, for example, an LED connection, which might be helpful to PC enthusiasts who want to have their computer brightly lighted with RGB lighting. There also includes a “speaker” connector that lets you connect your case to a speaker, which allows you to hear beeping sounds when your PC boots up that.
There may also be a reset button that resets the BIOS, i.e., the essential program for the boot-up procedure of your PC. It comprises multiple pins, each with a distinct function, and on some motherboards, the front panel connectors may not have a concealing block.
These front panel connectors can be easily located by reading the manual that comes along with the Motherboard or by simply reading the labels off of the Motherboard and looking for a connector port with the label “F_Panel.”

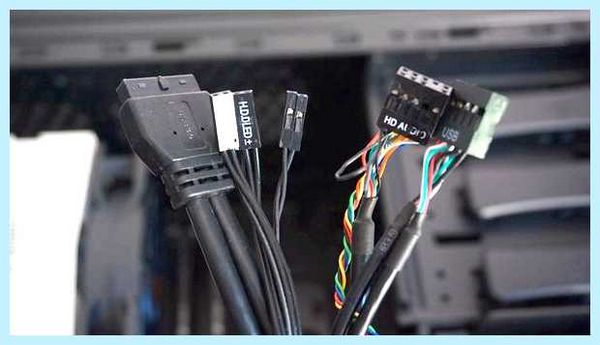

Types of Front Panel Cables:
The system panel cables are usually linked directly to the Motherboard on most computer motherboards. However, some motherboard makers, such as ASUS, provide a Q-Connector with the Motherboard. The user can connect the system panel cables away from the Motherboard and then connect the Q-Connector to the Motherboard.
Most commonly, there are these five types of cables coming from your front panel connectors:
HDD LED (IDE LED)
The hard drive’s LED activity light. This light flashes when data is being written to or read from the hard drive.
PLED (Power LED)
The LED power light indicates whether the computer is turned on, off, or in standing mode.
PWRSW (Power Switch)
Controls the power button, which allows you to switch the computer on and off.
Reset SW (Reset Switch)
The reset button is used to restart the computer.
Speaker
The internal speaker produces the beep noises you hear when your computer boots up.
Pins and what they are used for:
There are, once again, two approaches to address this. Either read the physical labels on the Motherboard for each pin of the Front Panel Header or check the motherboard manual.
It is essential to review your Motherboard to see what the physical labels truly mean because, in certain circumstances, there may be some unique connectors that can be confusing. So it would be best if you connected the cables from the PC case to the correct pins.
Front Panel Connectors. The Pros and Cons:
The primary benefit of having a front panel connector is that your computer’s components, such as the power button and reset switch, are located outside the casing. This allows you to turn your computer on and off without opening the casing.
The only major drawback that can come from a front panel connector is that sometimes the case with suitable user interface buttons on the outside might be a little pricey. So the cost plays a role in whether you get good quality front panel connectors.
Do the cables come with your PC Case?
It’s possible that your PC case doesn’t include ALL of the wires. As a result, you DO NOT have to connect all of the pins on your Motherboard. For example, if your PC case lacks a beep code speaker, it may not come with a cable for it. And similarly, if your PC case does not have a Chassis Intrusion sensor, then the Chassis Intrusion Pins (+CL-) will be left unplugged.
The next step is to connect the wires to the correct pins with all of this done.
Order of connection of the pins:
Since the system panel cables are not keyed, they can be connected in any way. The system panel connector wires, except the LED cables, can be connected in either direction.
The LED light will not operate if the LED cables are plugged in backward. With most current motherboards, you can usually tell which cable belongs whereby searching for a (+) and a (-) sign on the Motherboard. A colored wire (powered wire) would be connected to the (+) sign, while a white or black cable (ground) would be connected to the – symbol.
The direction of the connection is significant for LED light connections. In other words, you must ensure that the (+) terminal of the cable is connected to the (+) pin and the (–) terminal of the cable is connected to the (–) pin.
The connectors must be aligned with the orientation stated on the front panel label. Only the Power and Reset button switches can be connected as the labeled orientation does not apply to them.
Power Connectors can be used to jump the Motherboard:
The ability to jump-start the Motherboard without a power-on button is one of the most significant functions provided by the Front Panel Connectors. The Front Panel Connectors are an essential feature of the system since they allow you to jump-start your PC when the Power from the socket is unavailable.
If you place both pins on top of each other, you will create a circuit that will send electricity through all the pieces inside and start up our machine. Touching both Powers on Switch pins together with a precise screwdriver will help you achieve this.
Importance of Front Panel Connectors:
The Front Panel Connectors may appear minor at first glance, but they are an essential component of your system and may be needed to connect the Motherboard. They also provide various functions, such as Power on/off for case buttons, for which you will need more clarification to avoid making mistakes while connecting them properly.
While the Front Panel Connectors may not seem as important, they are the main path via which the system and case/chassis buttons interact with the Motherboard. However, you must go through the motherboard manual for precise information about the individual pins on your front panel connections. Even though it may appear a bit challenging at first, you will soon realize that it is relatively easy to go through.
You can even test your front panel connectors by simply unplugging the power supply from your Motherboard and using a flat head screwdriver to contact the two pins on the power switch for 1-2 seconds. You may need to use a paper clip to test your power source to check whether it turns on or if the power button is defective.
